• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1958–1961

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 22496

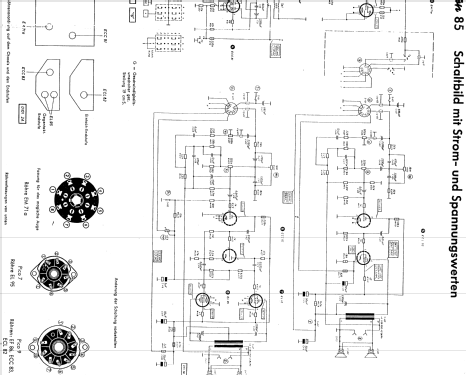

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF86 ECC83 ECC81 ECC83 EM71a EL95 EL95

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Magnetophon 85KL - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 455 x 200 x 415 mm / 17.9 x 7.9 x 16.3 inch

• Notes
• Technische Daten wie Magnetophon 85K, jedoch mit 6-W-Gegentaktendstufe.
  Parallelgerät zu: AEG Magnetophon 85KL.

• Net weight (2.2 lb = 1 kg)
• 14.5 kg / 31 lb 15 oz (31.938 lb)

• Price in first year of sale
• 699.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Mentioned in
• Handbuch für Rundfunk Fernsehen Phono (RFP) 1959/60 S.335

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Funk-Technik (FT) (21/1958, S. 715, 716 / Beschreibung, Schema)
