- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1961–1965
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 25990
Scan aus Telefunken-Prospekt
Radioschau 12.1961
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

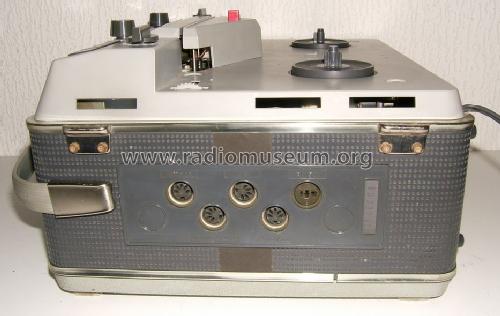

- Model: Magnetophon 96 - Telefunken Deutschland TFK,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 410 x 200 x 292 mm / 16.1 x 7.9 x 11.5 inch
- Notes
- Vierspur; Mono-Aufnahme und Wiedergabe; 4,75/9,5/19 cm/s; Spulen-Ø 18 cm.
Preis in Österreich 5680,- ATS.
Parallelgerät zu: AEG Magnetophon 96.
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 649.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
