- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1962–1966
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 25992
Scan aus Telefunken-Prospekt
Eigenes Foto
Eigenes Foto
Eigenes Foto
Eigenes Foto
Eigenes Foto

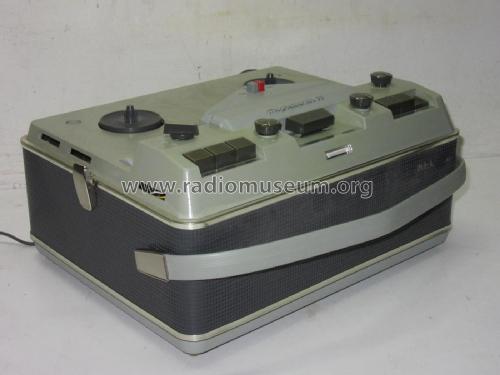

D-Telefunken-Magnetophon 98
D-Telefunken-Magmnetophon 98-Rueckw.
D-Telefunken-Magnetophon 98-Innen
D-Telefunken-Magnetophon 98-Innen
D-Telefunken-Typenschild
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Magnetophon 98 - Telefunken Deutschland TFK,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 410 x 200 x 292 mm / 16.1 x 7.9 x 11.5 inch
- Notes
- Zweispur Stereo; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s. Spulen-Ø 18 cm; NF-Ausgangsleistung 2× 2,5 W.
Parallelgerät zu: AEG Magnetophon 98.
- Net weight (2.2 lb = 1 kg)
- 12.4 kg / 27 lb 5 oz (27.313 lb)
- Price in first year of sale
- 958.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1962/1963
- Literature/Schematics (1)
- -- Original-techn. papers.
