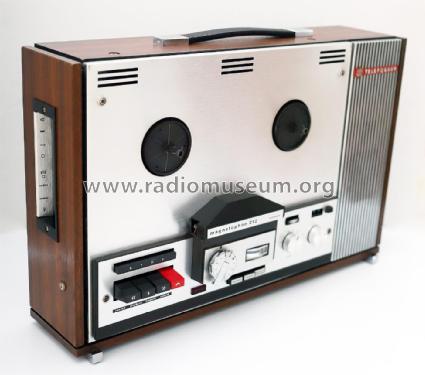

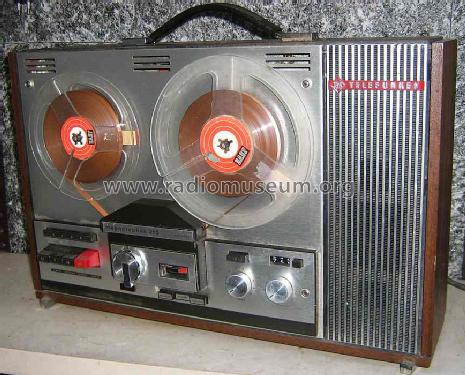

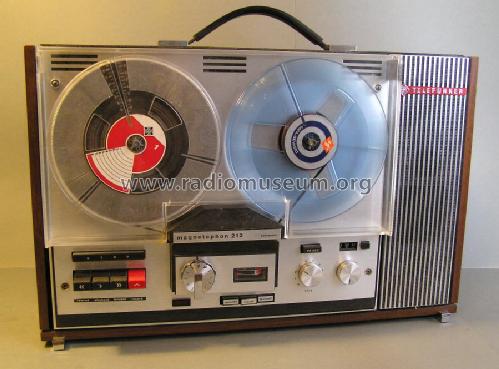

Magnetophon 212 automatic M-212

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1969–1972
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 27789

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Magnetophon 212 automatic M-212 - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 505 x 155 x 335 mm / 19.9 x 6.1 x 13.2 inch
  • Notes
  • Transistoren: 2× BC149, 4× BC148, H458BC, AD164P, AD165P.
    Vierspur-Mono; Bandgeschwindigkeit: 9,5 cm/s; Spulen-Ø: 18 cm; Übertragungsbereich: 60-13000 Hz. beim Exportmodell auch Anschluß 117 Volt, 60 Hz
    Es gibt einen Ersatzmotor von Telefunken.
  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • External source of data
  • erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
