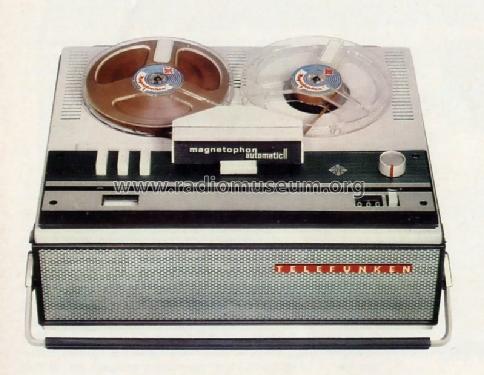

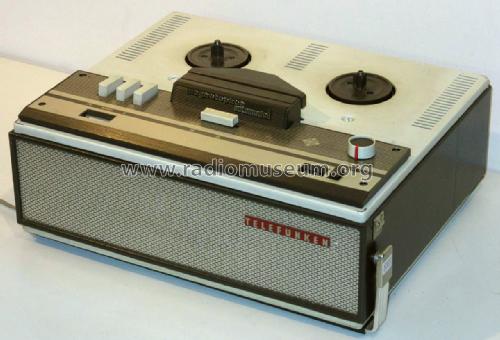

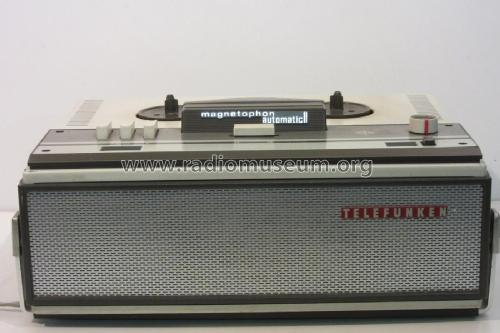

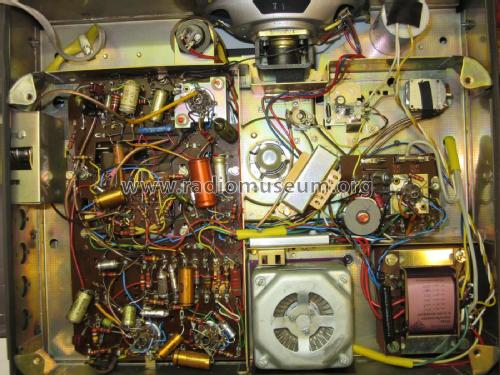

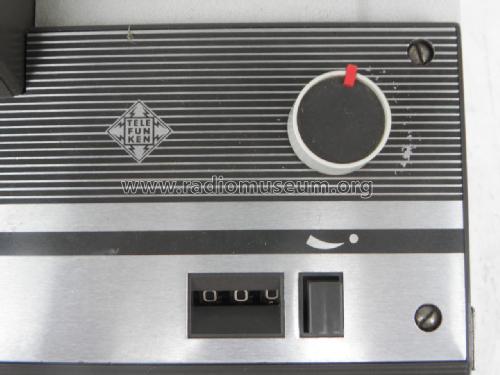

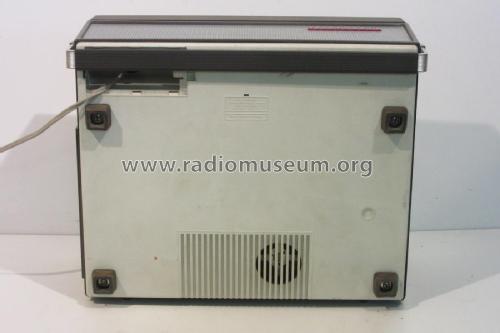

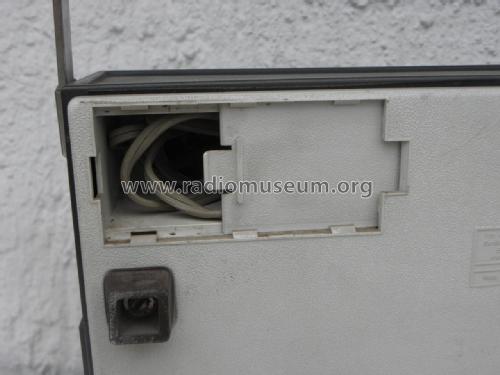

Magnetophon automatic II (2)

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1964–1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 25987

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 EF83 ECC83 EL95 EM84

• Number of Transistors

• Semiconductors
• E30C5 E30C5 B250C75

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Magnetophon automatic II - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 165 x 300 mm / 15 x 6.5 x 11.8 inch

• Notes
• Zweispur; Bandgeschwindigkeit 9,5 cm/s; Spulen-Ø 15 cm:
  Parallelgerät zu: AEG Magnetophon Automatic II.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Price in first year of sale
• 469.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965
