• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1975–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 94299

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

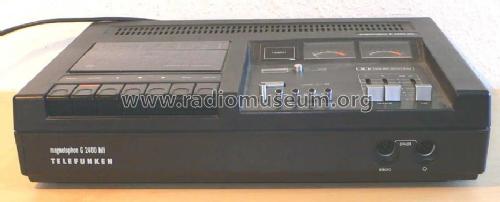

• Model: Magnetophon C 2400 HiFi - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 390 x 85 x 330 mm / 15.4 x 3.3 x 13 inch

• Notes
• ICs: 4.
  HiFi-Stereo-Cassetten-Deck. Übertragungsbereich: 30···12000 Hz.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Source of data
• Handbuch VDRG 1975/1976

• Mentioned in
• Handbuch VDRG 1976/1977 (und 1977/78)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
