Magnetophon cc-combi-L

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1971
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 167861

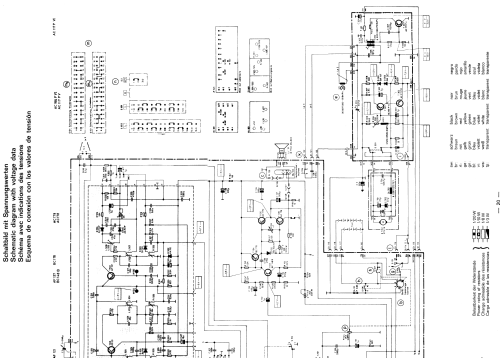

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 17
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 5 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Batteries / addl. power jack / 5 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.8 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Magnetophon cc-combi-L - Telefunken Deutschland TFK,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 310 x 65 x 225 mm / 12.2 x 2.6 x 8.9 inch
  • Notes
  • Betrieb über 6/12V Autoadapter oder externem Netzteil möglich.
  • Net weight (2.2 lb = 1 kg)
  • 2 kg / 4 lb 6.5 oz (4.405 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Bernd Pötzsch. See "Data change" for further contributors.
