- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1957/1958
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 21537

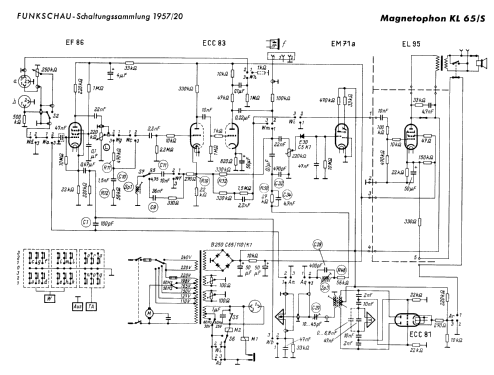

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 2.5 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Magnetophon KL65KS - Telefunken Deutschland TFK,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 380 x 370 x 160 mm / 15 x 14.6 x 6.3 inch
- Notes
- Zweispur; 4,75/9,5 cm/s; Spulen-Ø 13 cm.
Parallelgerät zu: AEG KL65KS.
- Net weight (2.2 lb = 1 kg)
- 9 kg / 19 lb 13.2 oz (19.824 lb)
- Price in first year of sale
- 598.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1957/58
