• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1959/1960

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 22499

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC81 ECC81 ECC81 ECC81 ECC81 ECC81 ECC81

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-237 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

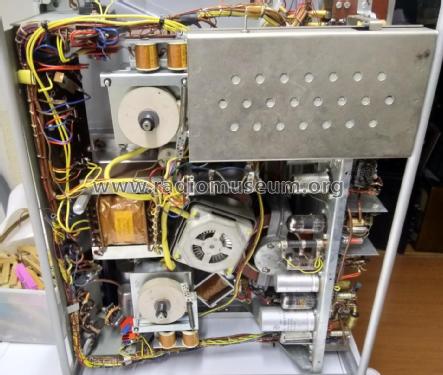

• Model: Magnetophon M23 [ohne Endstufe] - Telefunken Deutschland TFK,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 530 x 270 x 530 mm / 20.9 x 10.6 x 20.9 inch

• Notes
• Technische Daten wie Magnetophon M23K, jedoch Chassis-Ausführung ohne Endstufe.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 1,475.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60
