• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1971–1973

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28473

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• 2SC693 2SC536 2SC536 2SC536 2SC693 2SC536 2SC536 2SB22 2SC536 2SB492 2SB492 2SC828 2SB324 unknown_tr_FET

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 127; 220; 240 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

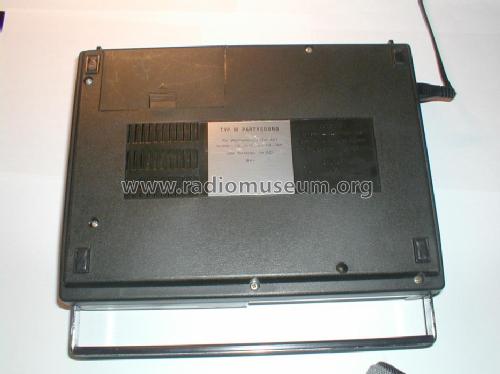

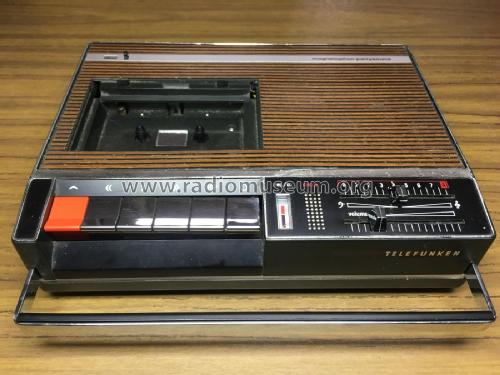

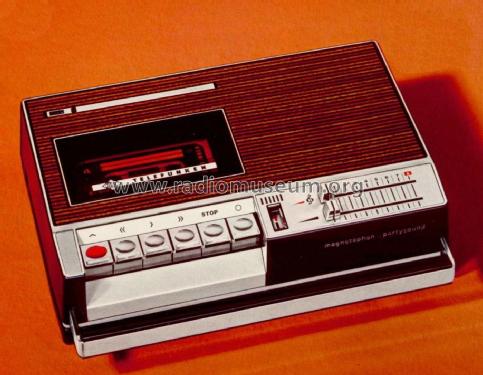

• Model: Magnetophon Partysound - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 75 x 210 mm / 10.6 x 3 x 8.3 inch

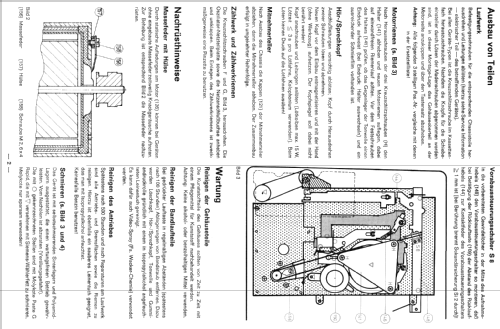

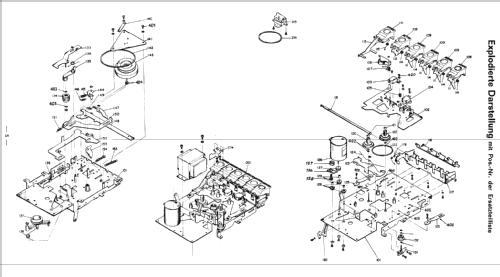

• Notes

• Zwei-Spur-Cassetten-Recorder Modell Telefunken magnetophon partysound.
  Übertragungsbereich: 63-10000 Hz
  Eingebautes Mikrofon
  abschaltbare Aussteuerungsautomatik
  3-stelliges Ziffern-Zählwerk mit Rückstelltaste
  Gehäuse: Kunststoff in riobraun mit Holzdekor

  Manual says (Technichen Daten) 11 transistors, then list 15 transistors but there are only 14, listed 4 x 2SC536 instead 3 x 2SC536.

  unknown_Tr_FET is K3464C, probably inside the microphone case and not replaceable.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972
