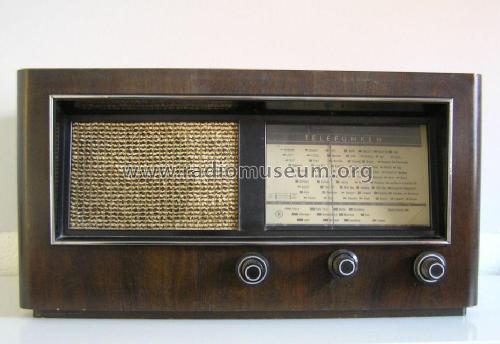

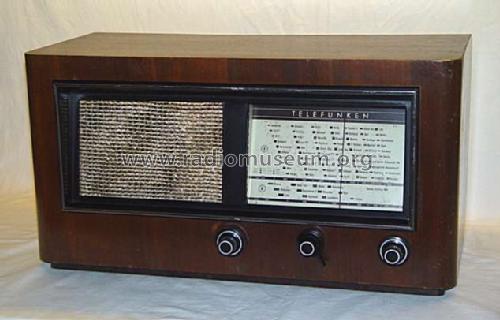

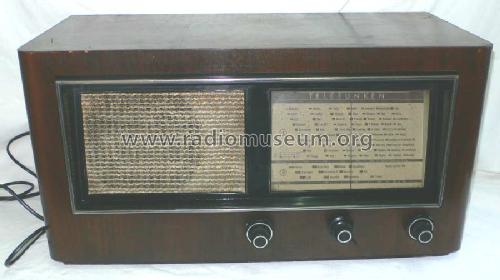

Markstein-Super 755GW (T755GW)

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4306

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

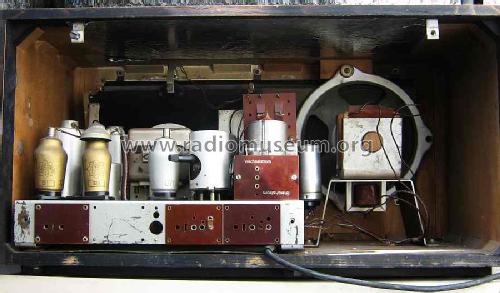

• Number of Tubes
• 5

• Valves / Tubes

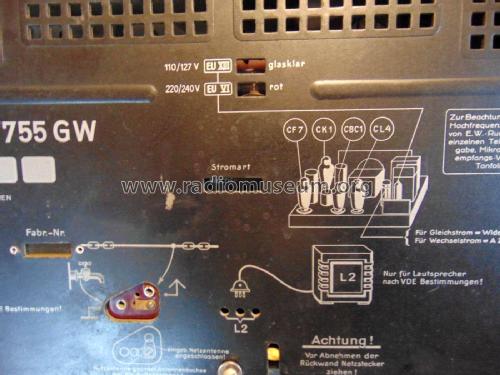

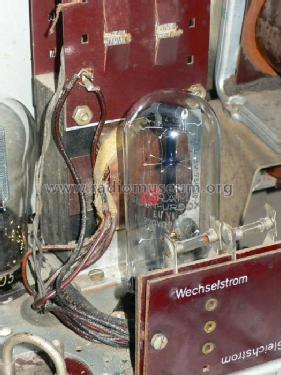

• CK1 CF2 CBC1 CL4 optional AZ1 Ks1320 or EUVI

• Main principle

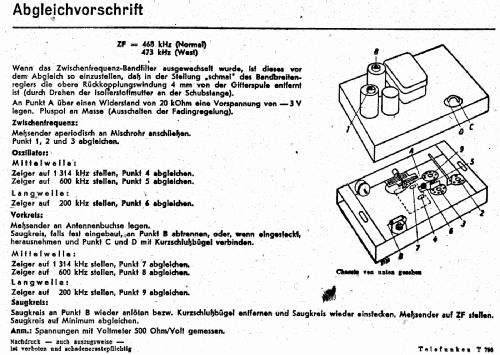

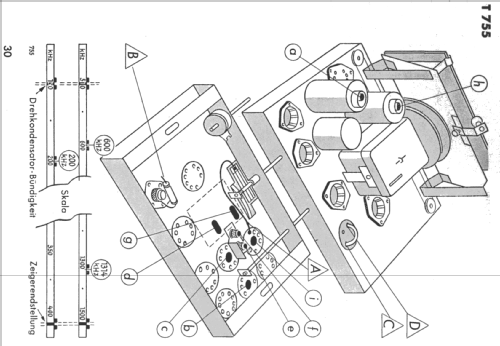

• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands

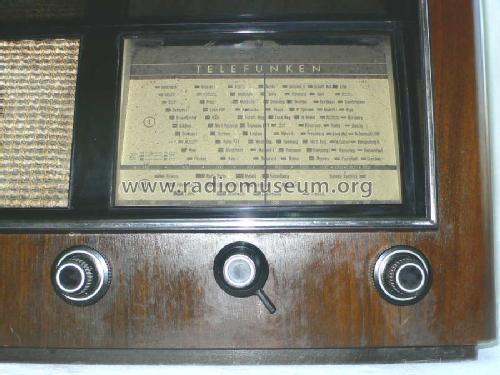

• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 120-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Markstein-Super 755GW - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 613 x 325 x 310 mm / 24.1 x 12.8 x 12.2 inch

• Notes
• =Siemens 74GW.
  variable Bandbreite.
  Bestückung auch mit CF7 statt CF2 möglich.

• Net weight (2.2 lb = 1 kg)
• 14.7 kg / 32 lb 6.1 oz (32.379 lb)

• Price in first year of sale
• 249.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
