- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 233597

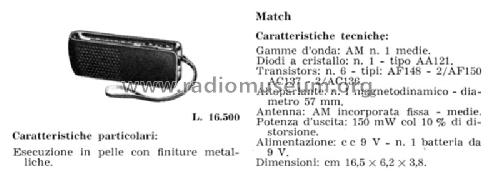

catalogo anie

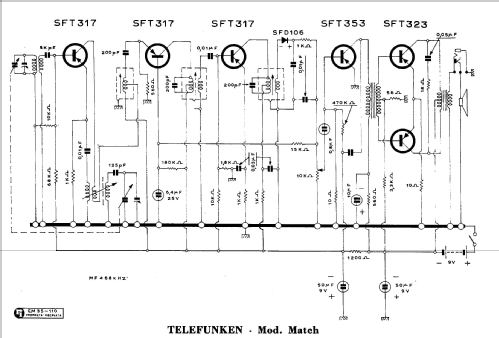

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Semiconductors
- SFT317 or. AF148 SFT317 or. AF150 SFT317 or. AF150 SFT353 or. AC137 SFT323 or. AC136 SFT323 or. AC136 SFD106 or. AA121
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
- Power out
- 0.15 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Match - Telefunken Italia, Milano
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 165 x 62 x 38 mm / 6.5 x 2.4 x 1.5 inch
- Price in first year of sale
- 16,500.00 ITL
- Source of data
- -- Schematic
- Mentioned in
- Catalogo ANIE (1963-64)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Leonardo Mureddu. See "Data change" for further contributors.
