• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1978 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 249832

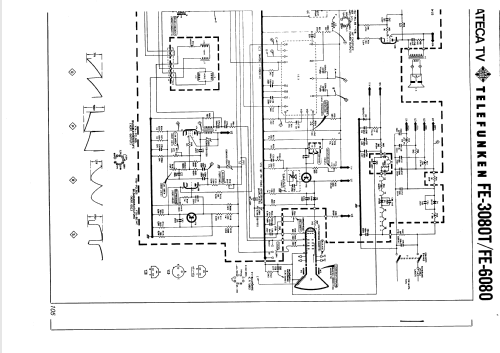

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• PCL85 PL504 PY88 A50-120W/2

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 2 W (2.5 W max.)

• Material
• Wooden case

• from Radiomuseum.org

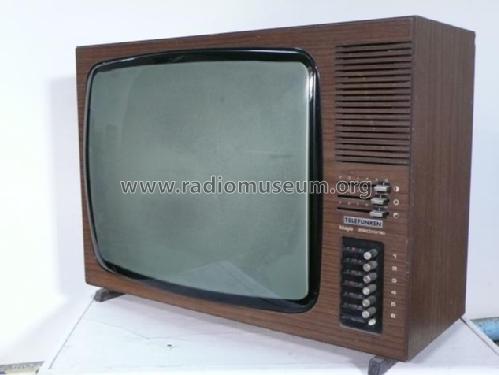

• Model: Maya-electronic FE6080 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 567 x 417 x 335 mm / 22.3 x 16.4 x 13.2 inch

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Price in first year of sale
• 8,500.00 pte

• Author
• Model page created by Manuel Albano Neves. See "Data change" for further contributors.
