• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1977/1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 125302

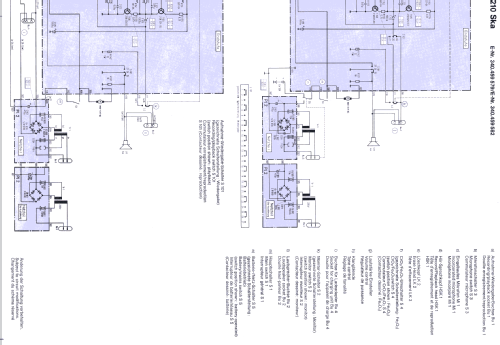

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

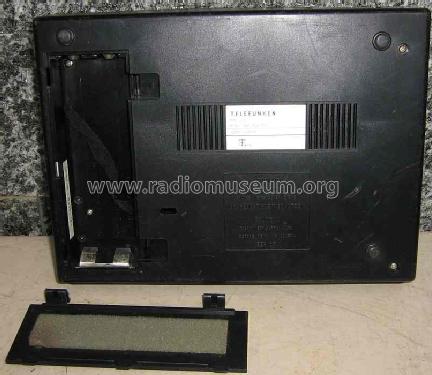

• Model: Magnetophon MC210 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 70 x 210 mm / 10.6 x 2.8 x 8.3 inch

• Notes
• Telefunken magnetophon MC 210 , Cassetten-Recorder für Netz- und Batteriebetrieb. Frequenzumfang: 63···10000 Hz. Aussteuerungs-Automatik. Eingebautes Mikrophon. Bandendabschaltung mit Tastenauslösung. Für alle Cassetten geeignet. Lieferbar in schwarz/silber.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
