• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160683

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• SFT358 AF106 SFD111 SFD106 SFT354 SFT316 SFT316 SFD106 SFD111 SFD111 SFT337 SFT367 AC180 AC181

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

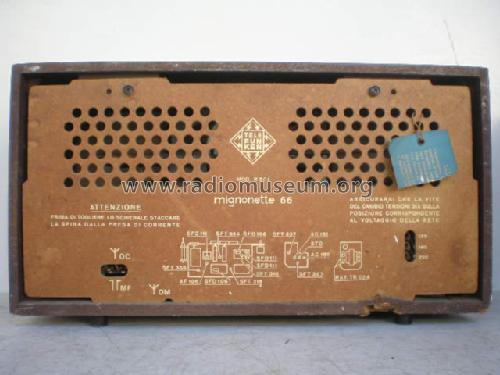

• Model: Mignonette 66 R564 - Telefunken Italia, Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 365 x 200 x 158 mm / 14.4 x 7.9 x 6.2 inch

• Notes
• Altoparlante ellittico 15 x 10 cm.

• Author
• Model page created by Fabio Masetti. See "Data change" for further contributors.
