• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169655

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 UCH81 UF89 UABC80 DM70 EL84 UY85

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120; 140; 160; 180; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

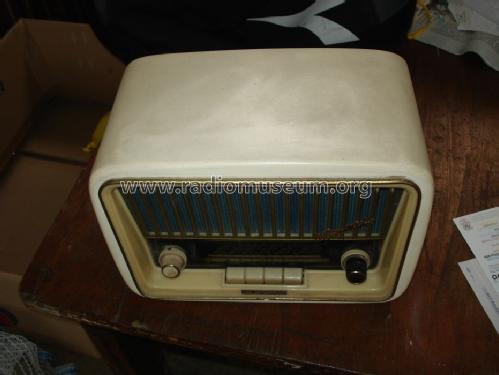

• Model: Mignonette MF-R194 - Telefunken Italia, Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 307 x 208 x 175 mm / 12.1 x 8.2 x 6.9 inch

• Notes
• Altoparlante ellittico 9 x 14 cm.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Antonio Cavallaro. See "Data change" for further contributors.
