• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 127642

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 125-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

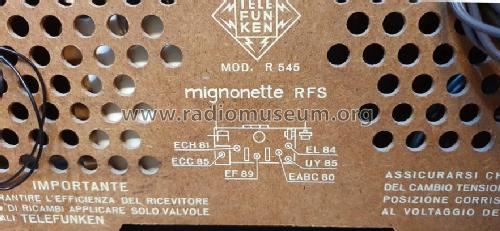

• Model: Mignonette RFS R545 - Telefunken Italia, Milano

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 370 x 230 x 350 mm / 14.6 x 9.1 x 13.8 inch

• Notes
• Giradischi a 4 velocità con testina rivelatrice piezoelettrica.
  4 speed record player.

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
