Mister Hit 2000

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1974–1978

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 79606

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• TBA641

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Mister Hit 2000 - Telefunken Deutschland TFK,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 370 x 125 x 250 mm / 14.6 x 4.9 x 9.8 inch

• Notes

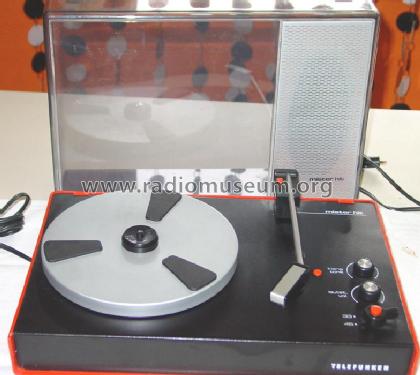

• Verstärker-Phonokoffer. Plattenspieler für 33/45 UpM. Stereo-Wiedergabe über separaten Verstärker möglich.

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Source of data
• Handbuch VDRG 1974/1975

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
