Mozart 754AC
Telefunken Radiotécnica Ibérica; Getafe
- Country
- Spain
- Manufacturer / Brand
- Telefunken Radiotécnica Ibérica; Getafe
- Year
- 1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110396

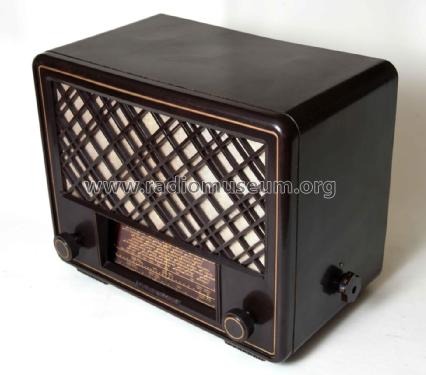

Ebay octubre 2007
Ebay octubre 2007

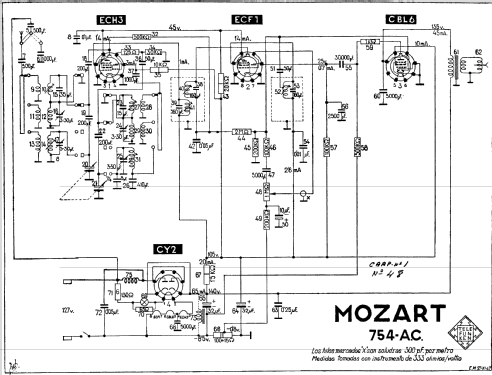

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110-127 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Mozart 754AC - Telefunken Radiotécnica
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Price in first year of sale
- 2,200.00 ESP
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
