Ocean 659WLK (T659WLK)
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1934/1935
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 4411
Der Radio Händler - Febr. 1935

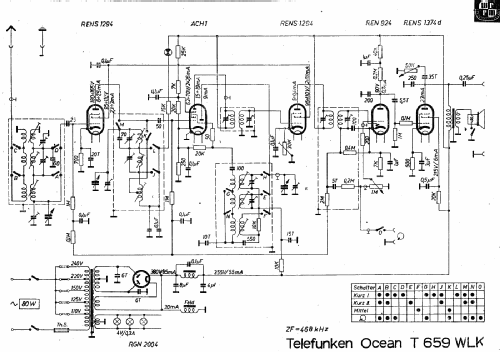

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 468 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Ocean 659WLK - Telefunken Deutschland TFK,
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 440 x 460 x 300 mm / 17.3 x 18.1 x 11.8 inch
- Notes
- Feldstärkeanzeige.
- Source of data
- Radiokatalog Band 1, Ernst Erb
- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
- Other Models
-
Here you find 3559 models, 3144 with images and 2111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Forum contributions about this model: Telefunken: Ocean 659WLK
Threads: 2 | Posts: 6
Can anyone please tell me if C29A is inside the coil assembly in the Anode cicuit of V1? I have found only C29 ( which is ok) and something is breaking down inside the coil assembly. I am wondering if C29A is the problem, as so far I have not found it!!!. According to the schematic, C29A should be on the outside.
Thanks a lot
Nigel Hulse
Nigel Hulse, 24.May.09
I am busy repairing one of these radios, but need some information (diameter etc.) on the loudspeaker, which is missing. The output transformer is also missing as I suppose it was mounted on the speaker.
Can anyone please assist?
Thank you
Nigel Hulse
Nigel Hulse, 03.May.09
