Operette Stereo AT-265-40-FM

Telefunken Radiotécnica Ibérica; Getafe

Data
Forum
Pictures
Collections

  • Year
  • 1970
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 193788

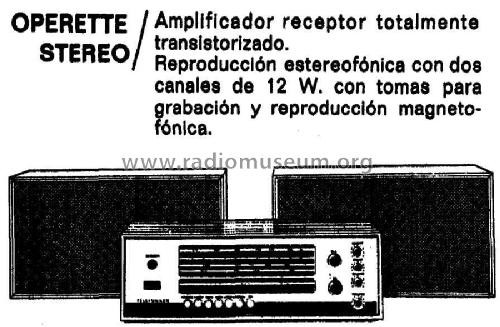

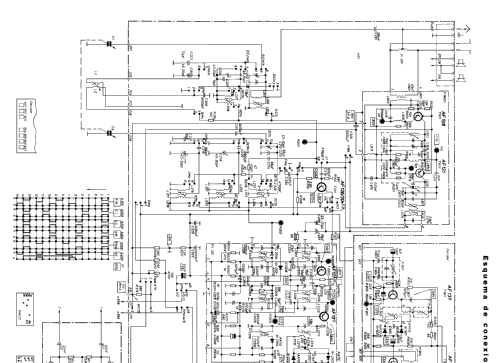

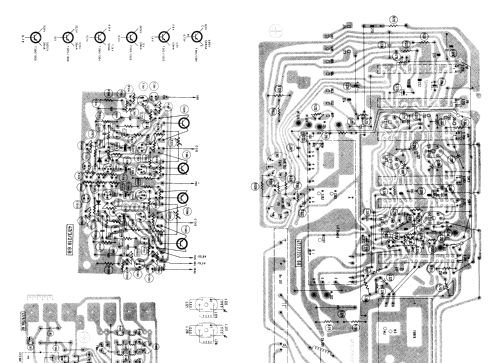

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 27
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; 5 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 12 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Operette Stereo AT-265-40-FM - Telefunken Radiotécnica
  • Shape
  • Tablemodel with Push Buttons.
  • Notes

  • El aparato viene con dos altavoces externos.
    Two external loudspeakers supplied with the equipment.

    Estereo 2 x 6 W.

    Listado un único seminconductor por tipo.

    El documento de servicio indica 11 + 4 circuitos para FM: 11 para el receptor y 4 para el decodificador multiplex (estéreo). Los últimos no entran en el recuento total.

    The service document states 11 + 4  circuits for FM: 11 for the receiver and 4 for the multiplex (Stereo) decoder. The latter ones does not go into the total count.

  • Literature/Schematics (1)
  • -- Original-techn. papers. (Anuncio La Vanguardia Española Enero 1970)
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
