Opus 52W

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4062

• Picture
• Schematics

Previous Next

Previous Next

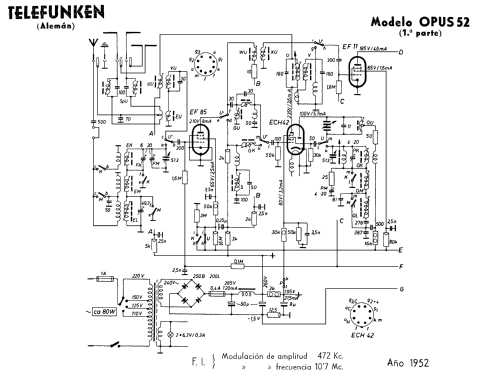

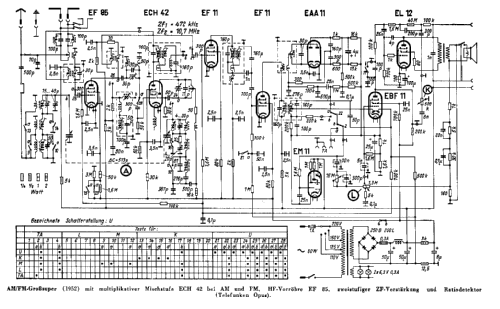

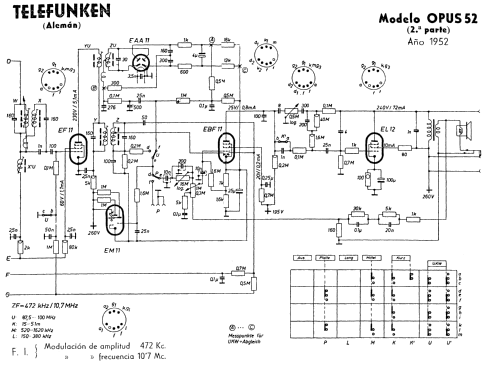

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF85 ECH42 EF11 EF11 EM11 EAA11 EBF11 EL12

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superhet with RF-stage; ZF/IF 472/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Opus 52W - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 435 x 300 mm / 24.4 x 17.1 x 11.8 inch

• Notes

• variable Bandbreite.

  Siehe auch das ähnliche Modell Telefunken 882W (882 UKW), wohl für den Export gefertigt.

• Net weight (2.2 lb = 1 kg)
• 19.5 kg / 42 lb 15.2 oz (42.952 lb)

• Price in first year of sale
• 642.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1951/52 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funkschau (5113)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
