• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4073

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

• Power type and voltage
• Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

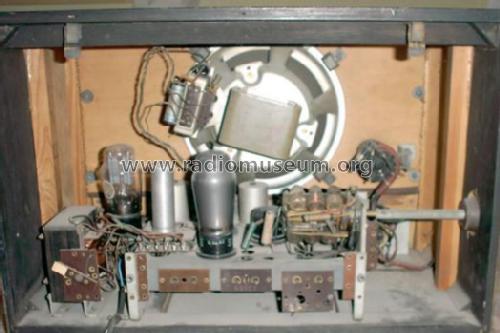

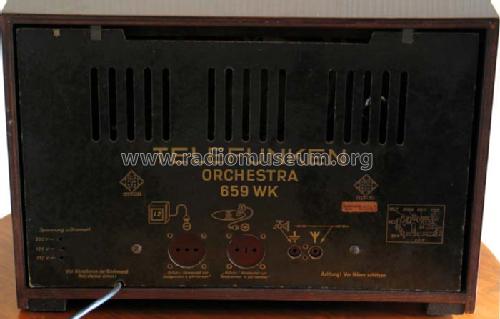

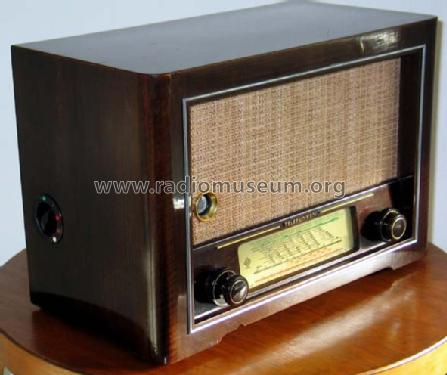

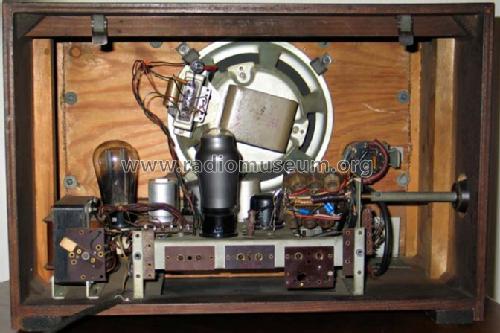

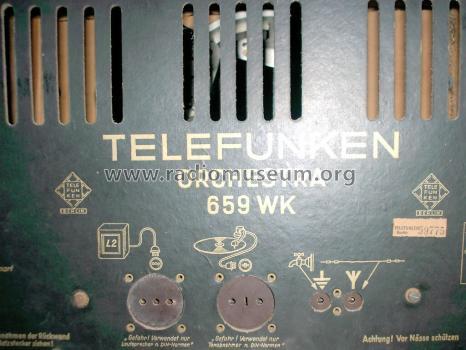

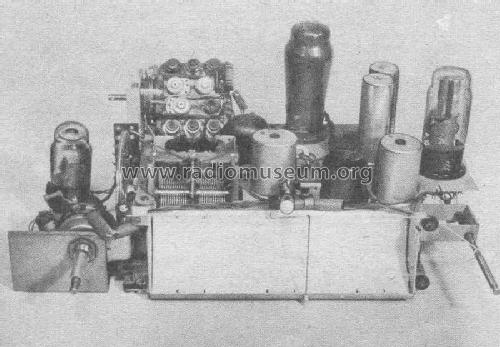

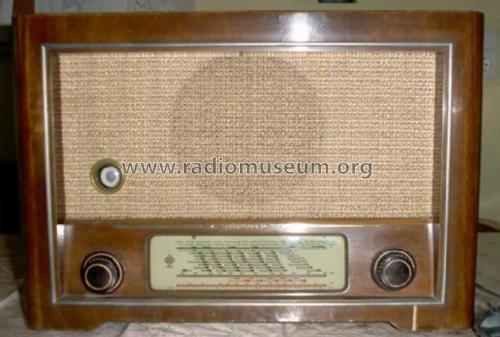

• Model: Orchestra 659WK - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 330 x 260 mm / 19.3 x 13 x 10.2 inch

• Notes
• Ch=6549 [FS4914]

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

• Price in first year of sale
• 458.00 DM

• Source of data
• Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funk-Technik (FT) (5004)

• Picture reference

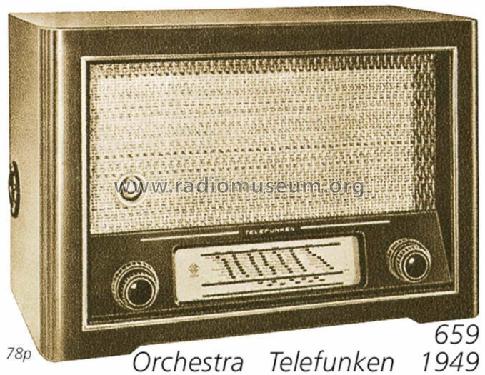

• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
