PALcolor 743 Erz.Nr. 314948556 Ch= 711
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1973/1974
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 128992

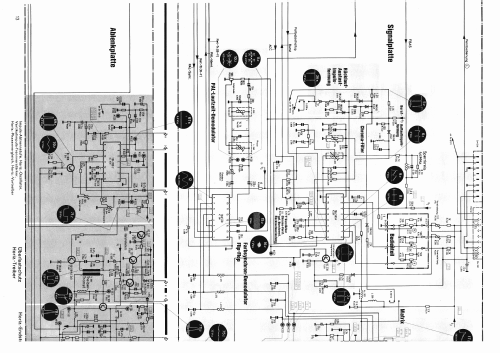

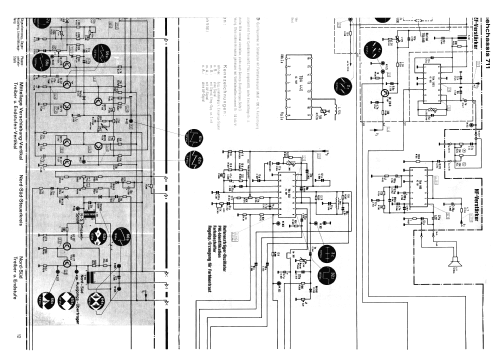

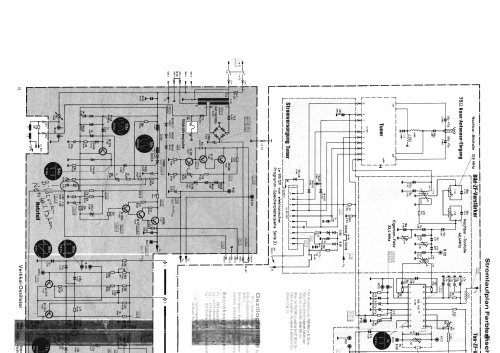

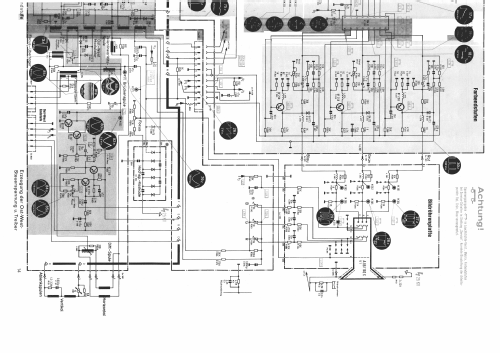

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A66-140X
- Number of Transistors
- 50
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: PALcolor 743 Erz.Nr. 314948556 Ch= 711 - Telefunken Deutschland TFK,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 730 x 510 x 460 mm / 28.7 x 20.1 x 18.1 inch
- Notes
- 66 cm Farbfernseh-Tischgerät mit Chassis 711A.
11 IC´s, 109 Dioden.
VHF/UHF-Tuner, Fernregler CR 11.
- Mentioned in
- Weiler Angebot 1973/74
- Literature/Schematics (1)
- -- Original-techn. papers.
