• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1968

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95115

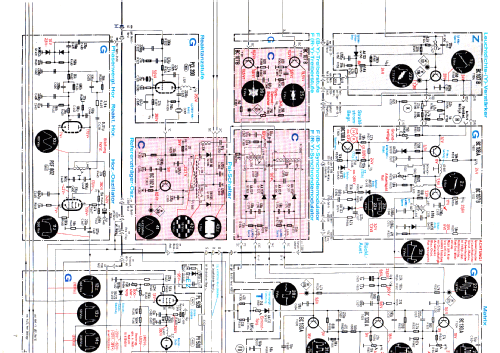

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• A56-11X or A56-120X

• Number of Transistors
• 35

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: PALcolor 628T - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 720 x 460 x 470 mm / 28.3 x 18.1 x 18.5 inch

• Notes

• Telefunken PALcolor 628T;
  56 cm "Synchron-Format" PAL-TV mit VHF/UHF Tuner nach CCIR B/G, Bildröhre mit "Europa-Maske" für 625 Zeilen, RGB Aussteuerung mit 3 Farbendstufen, MT-500 Tuner, CR 9 Fernregleranschluß,
  Welterste Farb-Bildröhre A56-11X (A56-120X) mit dem exakten Bildformat 4:3.

  Schaltplan siehe  Telefunken PALcolor 608 T

• Net weight (2.2 lb = 1 kg)
• 38 kg / 83 lb 11.2 oz (83.7 lb)

• Price in first year of sale
• 2,058.00 DM

• Source of data
• Handbuch VDRG 1968/1969

• Mentioned in
• FS 1968 Heft 23 & Telefunken Sprecher 46/1968

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 3558 models, 3143 with images and 2111 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
