• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62553

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite case

• from Radiomuseum.org

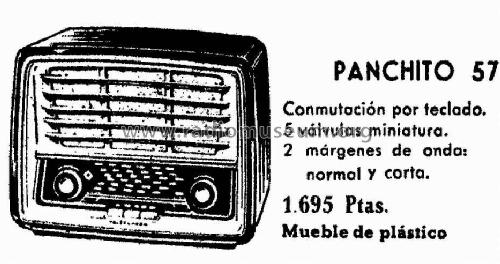

• Model: Panchito 57 U1615 - Telefunken Radiotécnica

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 250 x 200 x 150 mm / 9.8 x 7.9 x 5.9 inch

• Price in first year of sale
• 1,695.00 ESP

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Literature/Schematics (1)
• -- Original-techn. papers.
