• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1971/1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28578

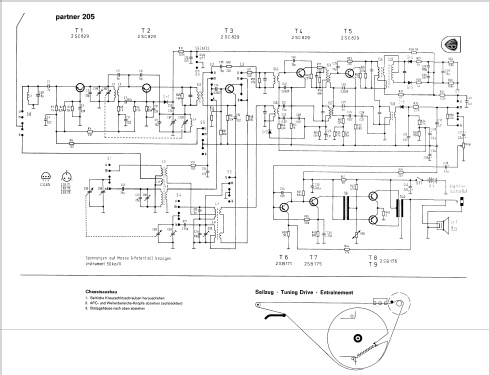

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC829 2SC829 2SC829 2SC829 2SC829 2SB171 2SB175 2SB176 2SB176

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

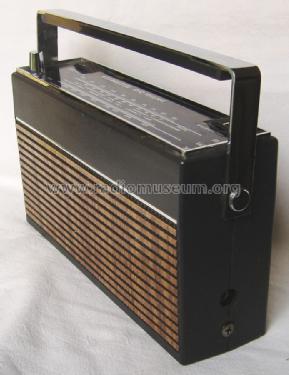

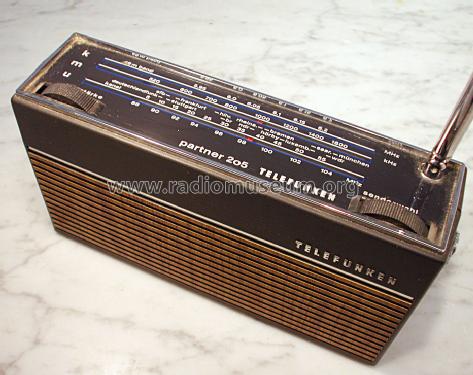

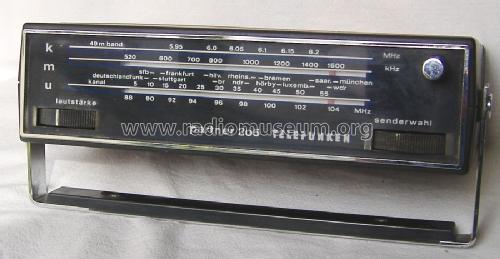

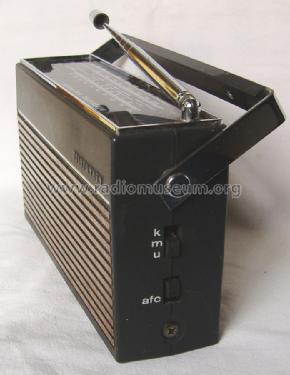

• Model: Partner 205 - Telefunken Deutschland TFK,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 193 x 105 x 53 mm / 7.6 x 4.1 x 2.1 inch

• Notes
• Automatische UKW-Scharfabstimmung.
  UKW: 87,5 - 104 MHz
  KW: 5900 - 6250 kHz
  MW: 520 - 1620 kHz


• Net weight (2.2 lb = 1 kg)
• 0.8 kg / 1 lb 12.2 oz (1.762 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972

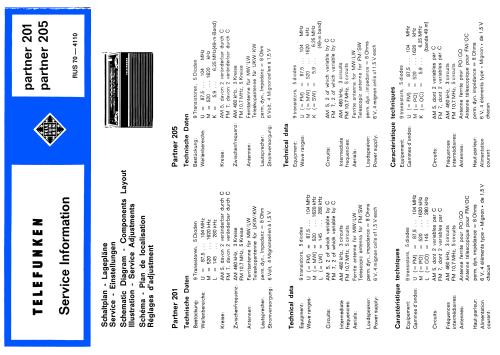

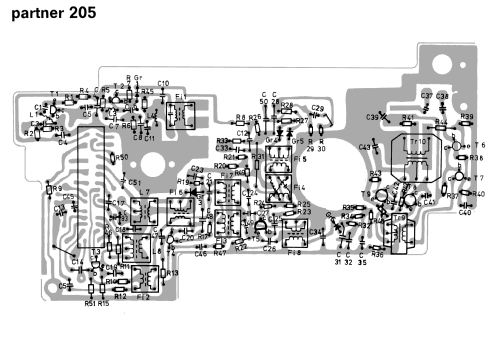

• Literature/Schematics (1)
