• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 268022

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• BF195 BF195 BF194 TAA300 OA91

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.23 W (0.44 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

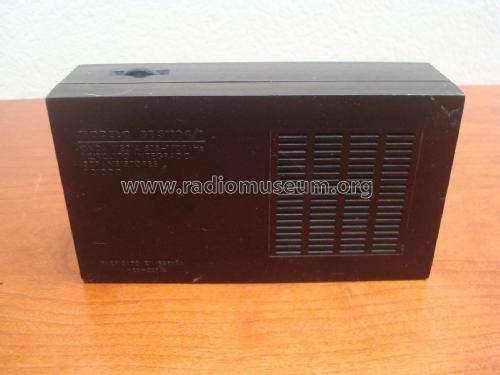

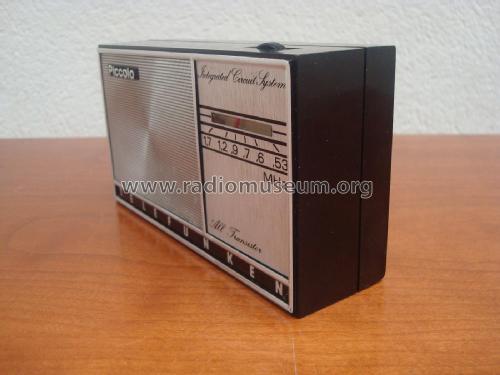

• Model: Piccolo BT-31104/1 - Telefunken Radiotécnica

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 146 x 82 x 42 mm / 5.7 x 3.2 x 1.7 inch

• Notes

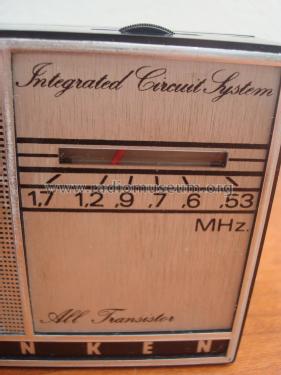

• O.M.: 535 - 1700 kHz

  Integrated Circuit System - All Transistor

• Net weight (2.2 lb = 1 kg)
• 0.330 kg / 0 lb 11.6 oz (0.727 lb)

• Mentioned in
• Radios españolas Joan Julià Enrich (Capítulo V - Radiotransistores mini y bolsillo)

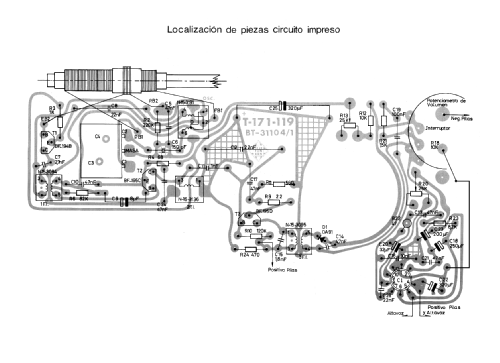

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Abel Cubas Torres. See "Data change" for further contributors.
