• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1975 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 314954

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-410W

• Number of Transistors
• 15

• Semiconductors
• TBA440 TBA950 TBA120S TBA611 BC308 BDX53 BF182 BF199 BC158 BC178 BC237 BC238 BC238 BC238 BD435 BD436 BF257 MC151 SC158 B40C5000 BA159 BU109 DA151 DA246 HVT30S MR852 OA91 1N4148

• Main principle
• Superhet with RF-stage; ZF/IF 38900 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 127; 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 7 W (10 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

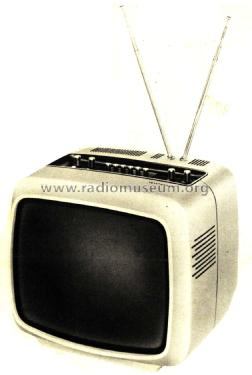

• Model: Porti TVP-535 /12 - Telefunken Radiotécnica

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 3328 x 280 x 262 mm / 131 x 11 x 10.3 inch

• Notes

• Telefunken Radiotécnica Ibérica Porti TVP 535 /12

  TV B/N 12" con sintonizador electrónico VHF/UHF

  • 4 presintonías por botonera para canales de VHF
  • 2 presintonías por botonera para canales de UHF
  • alimentación por red o batería externa

  No estan contados los transistores del sintonizador.







• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
