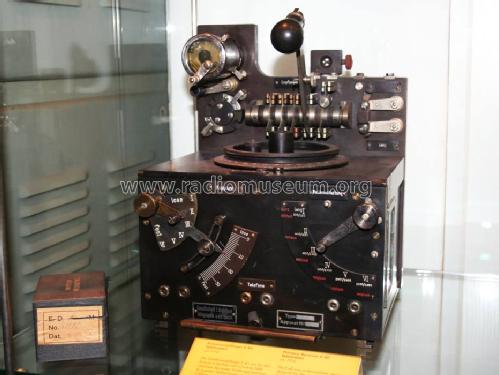

Primär-Empfänger E40
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1915 ??
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 117050
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Crystal or Solid State Detector
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: Primär-Empfänger E40 - Telefunken Deutschland TFK,
- Dimensions (WHD)
- 310 x 240 x 270 mm / 12.2 x 9.4 x 10.6 inch
- Notes
- Für Wellen von 250 bis 2500 m (120 bis 1200 kHz) an kleinen und mittleren Antennen.
- Net weight (2.2 lb = 1 kg)
- 2.8 kg / 6 lb 2.7 oz (6.167 lb)
- Mentioned in
- - - Manufacturers Literature (Telefunken-Stationen und Geräte (1919))
- Author
- Model page created by Thomas Günzel † 1.8.22. See "Data change" for further contributors.
