• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 290098

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors
• SF294 SF294 SF295 SF294 SF295 SF295 SC149 BC148 BC148 BC148 BC148 BC148 2N3794 2N3794 MC150 MC150 2N3794 BC148 BC148 BD136 BD135 BB100 SZ6 SFD107 1N542 SFD112 SD60 B30C350 TAA310 TAA611

• Main principle
• ZF/IF 455/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 6 x 1,5 / 115-240 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

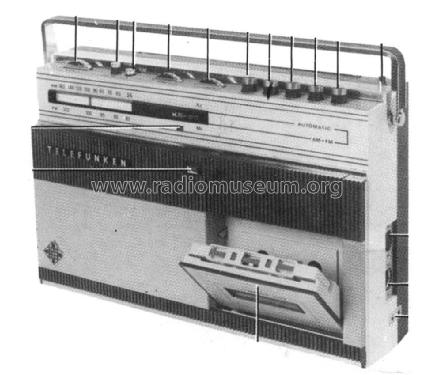

• Model: Radio Cassette KR-50 [con IC] - Telefunken Radiotécnica

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 200 x 80 mm / 11.8 x 7.9 x 3.1 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
