Capitol 33140
Loewe-(Opta); Deutschland
- Country
- Germany
- Manufacturer / Brand
- Loewe-(Opta); Deutschland
- Year
- 1962/1963
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 23863
-
- alternative name: Löwe Radio

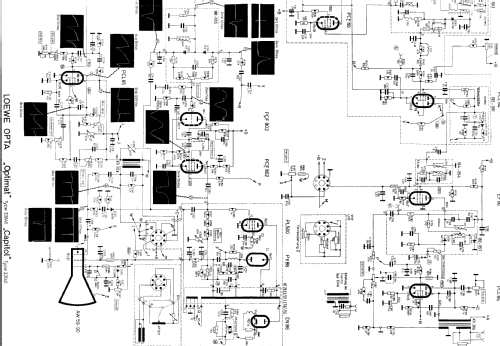

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- PCC88 PCF86 PC88 PC86 EF183 EF80 PCF80 PCL84 EF80 PCL86 ECH84 PCF802 PCL85 PL500 PY88 DY86 AW59-90
- Main principle
- Superheterodyne (common); ZF/IF 38900 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details

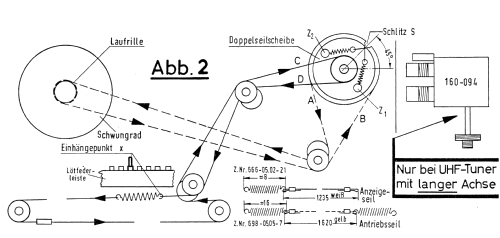

- Radio Control (+Remote Wire etc)
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Capitol 33140 - Loewe-Opta; Deutschland

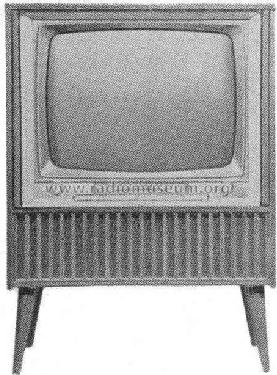

- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 680 x 930 x 410 mm / 26.8 x 36.6 x 16.1 inch
- Notes
- VHF/UHF. Technische Daten wie Optimat 33 040, jedoch Standgerät mit 2 Türen.
- Net weight (2.2 lb = 1 kg)
- 52 kg / 114 lb 8.6 oz (114.537 lb)
- Price in first year of sale
- 1,448.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1962/1963
