• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176839

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• UCH42 UF80 UAF42 UAA91 UM11 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

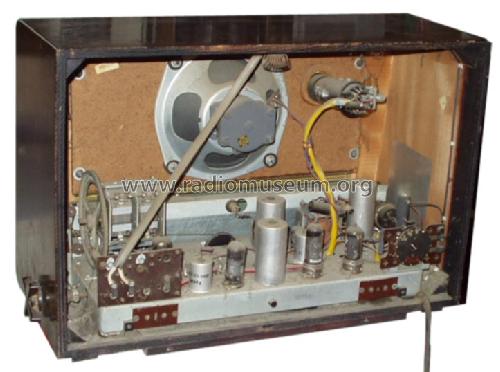

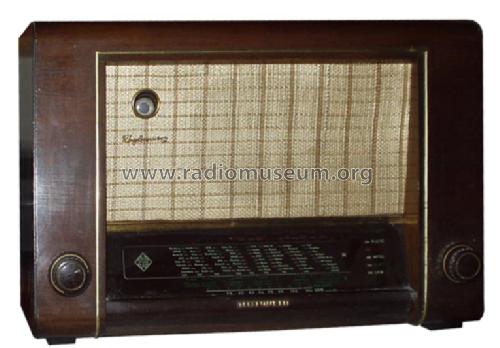

• Model: Rhythmus 52R [Allstrom] - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 340 x 220 mm / 19.7 x 13.4 x 8.7 inch

• Notes
• "R" steht für Ratiodetektor. Rö2 ist ZF und NF-Verstärker in Reflexschaltung.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
