Rhythmus S 1264 Nußbaum mittel poliert
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1961–1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23864

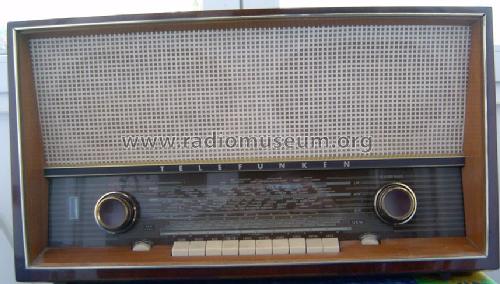

Bild aus Prospekt.
D_Telefunken_S1264
ebay

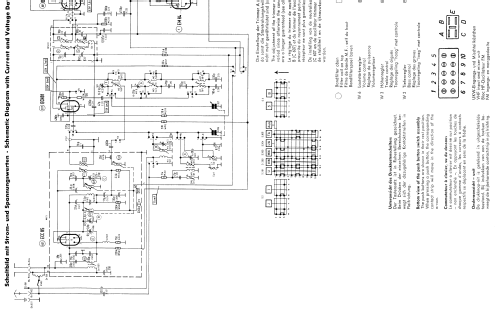

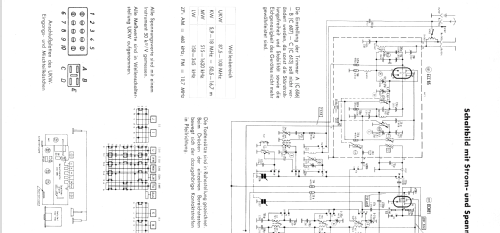

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 220; 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Rhythmus S 1264 [Nußbaum mittel poliert] - Telefunken Deutschland TFK,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 630 x 360 x 260 mm / 24.8 x 14.2 x 10.2 inch
- Notes
-
In einem Prospekt, enthaltend den Telefunken Rhythmus S 1264 (7 Röhren + 2 Ge-Diode), erwähnt Telefunken eine Röhre zu viel - wahrscheinlich rechnet man den Netzgleichrichter B250C125 dazu.
- Net weight (2.2 lb = 1 kg)
- 11.4 kg / 25 lb 1.8 oz (25.11 lb)
- Price in first year of sale
- 399.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
- Literature/Schematics (1)
- -- Original-techn. papers.
