• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194917

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF106 AF121 AF115 AF115 AF115 AC126 SL600_Trans AC132 AC127 OA81 1N542

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 4 x 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

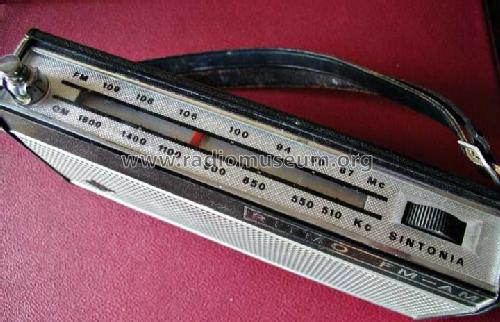

• Model: Ritmo FM-AM BT.261-12 - Telefunken Radiotécnica

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• FM 87 ... 109 MHz
  OM 510 ... 1800 kHz

• Source of data
• -- Schematic

• Literature/Schematics (1)
• -- Original-techn. papers. (Anuncio La Vanguardia Española marzo 1967)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
