- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 19629
Rondo TS 55 in basement bar
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

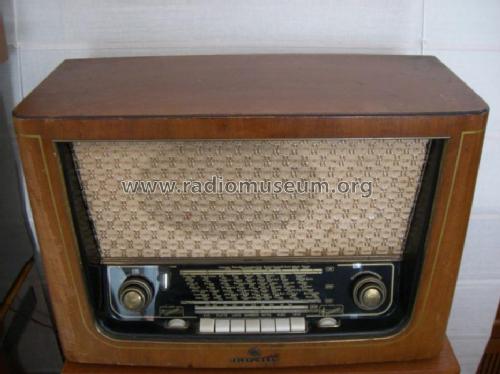

- Model: Rondo 55 - Telefunken Deutschland TFK,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 590 x 395 x 276 mm / 23.2 x 15.6 x 10.9 inch
- Notes
-
Kurzwellenspreizung / KW-Lupe; Bandbreite schaltbar;
Chassis baugleich mit AEG 3074WU.
- Net weight (2.2 lb = 1 kg)
- 11.6 kg / 25 lb 8.8 oz (25.551 lb)
- Price in first year of sale
- 349.00 DM
- External source of data
- Erb
- Source of data
- Rundfunk- und Fernseh-Katalog 1954/55
- Literature/Schematics (1)
- -- Original-techn. papers.
