- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1955–1958
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 20488
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 4 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

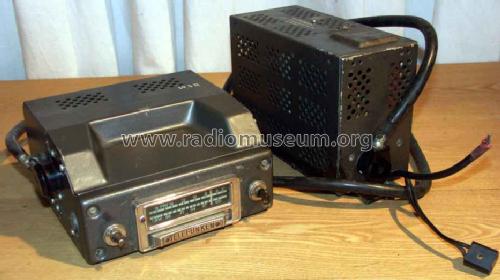

- Model: Selektor IIS61 - Telefunken Deutschland TFK,
- Shape
- Chassis only or for «building in»
- Notes
- 2-teilig.
- Price in first year of sale
- 487.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1955/56
- Literature/Schematics (1)
- -- Original-techn. papers.
