• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4315

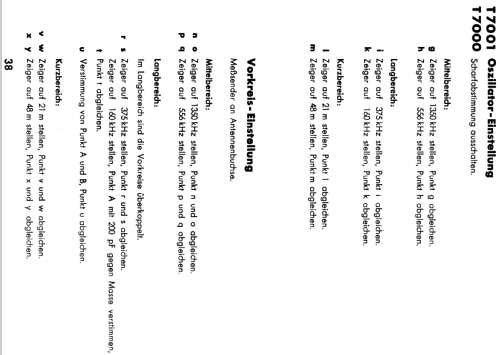

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• CH1 CK1 CF3 CF3 C/EM2 CB1 CC2 CL4

• Main principle
• Superhet with RF-stage; ZF/IF 468 kHz

• Tuned circuits
• 9 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 110, 125, 150, 220, 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Spitzensuper 7000SWK - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 725 x 420 x 335 mm / 28.5 x 16.5 x 13.2 inch

• Notes
• U4520/6

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 625.00 RM

• Source of data
• Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 3561 models, 3146 with images and 2113 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
