• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1964 ?

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 108000

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereokoder Md St 3122/1 - Telefunken Deutschland TFK,

• Shape
• Rack

• Notes
• Stereocoder für UKW-Rundfunksender.

• Mentioned in
• Funk-Technik (FT) (10/1964, S. 354, 355 / Stereokoder für das Pilottonverfahren)

• Literature/Schematics (1)

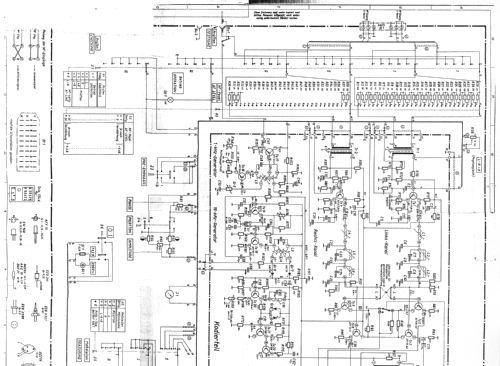

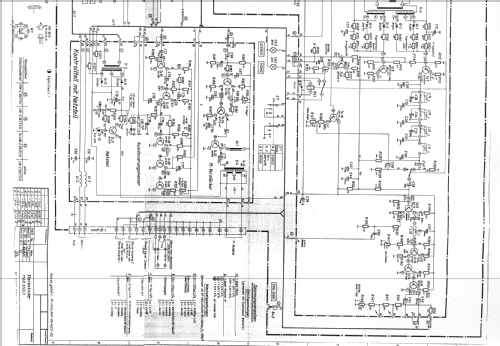

• -- Schematic
