Studio-Bayreuth FA28550

• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145922

• Picture

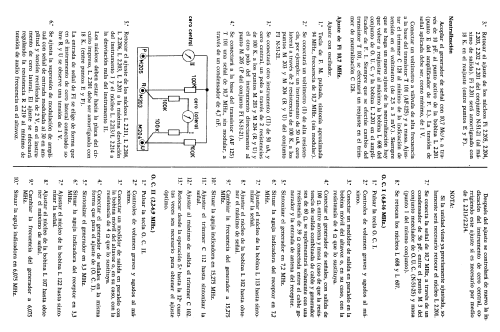

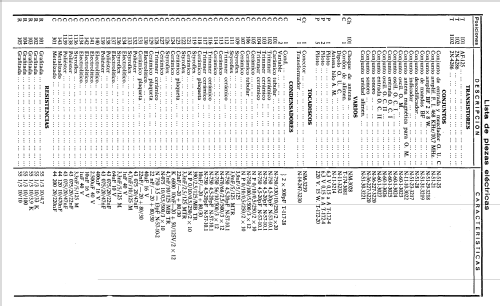

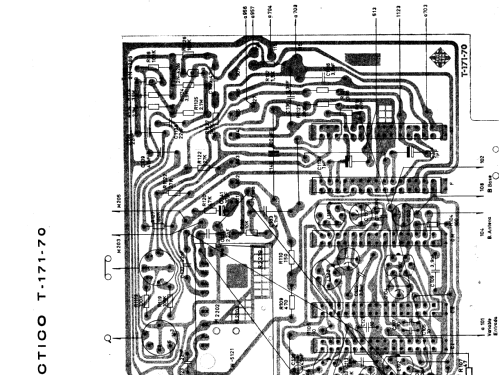

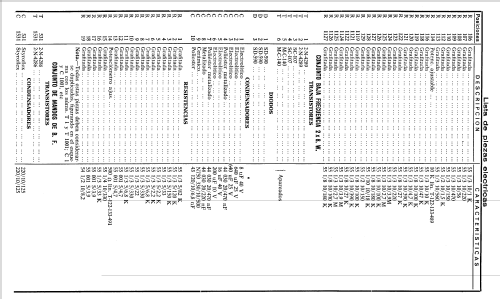

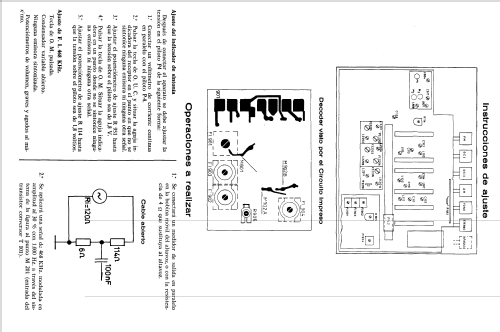

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 27

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     15 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 125-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Studio-Bayreuth FA28550 - Telefunken Radiotécnica

• Shape

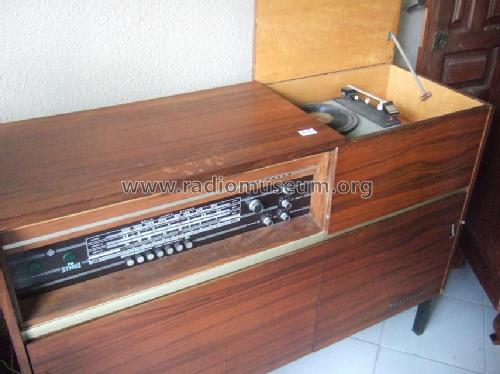

• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1130 x 800 x 370 mm / 44.5 x 31.5 x 14.6 inch

• Notes

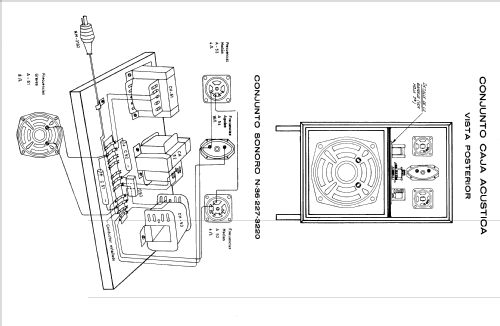

• Receptor Stereo en FM. 2× 20 W. Tiene por separado dos cajas acusticas haciendo juego con la consola con 4 altavoces cada una. Dos de medios uno de graves y otro de agudos con sus correspondientes divisores de frecuencia.

• Source of data
• - - Data from my own collection

• Author
• Model page created by Diego Fernandez-Fernandez. See "Data change" for further contributors.
