Studio Center 5004

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Data
Forum
Pictures
Collections

  • Year
  • 1980/1981
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 274124

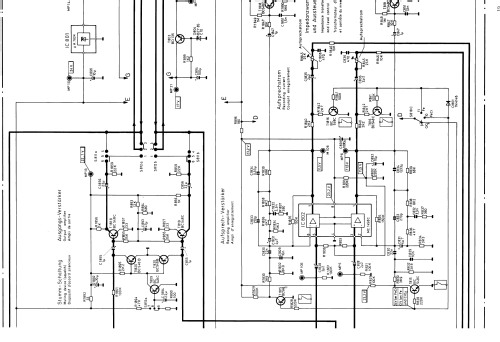

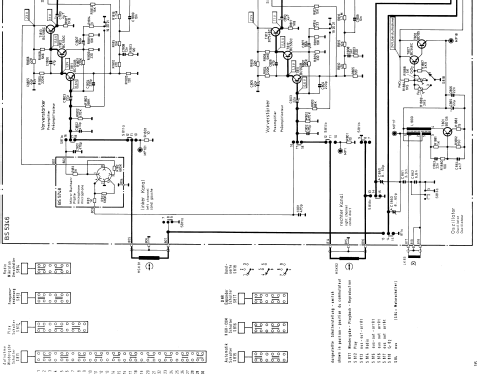

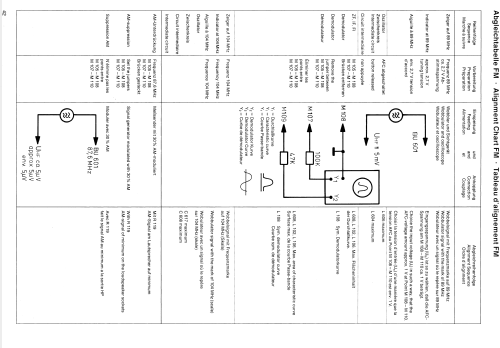

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (100 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Studio Center 5004 - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 620 x 190 x 375 mm / 24.4 x 7.5 x 14.8 inch
  • Notes

  • Telefunken Kompaktanlage mit HIGH COM Model studio center 5004.
    Verstärkerteil:
    2x30/50 Watt an 4 Ohm, 22-30000Hz, Speaker A, B, A+B
    Bass- & Treble Control
    Rausch-& Rumpelfilter
    AUX IN
    Tunerteil:
    4-Band Receiver
    AFC, 5x FM Stationstasten
    Phonoteil:
    Vollautomatischer Dual HiFi-Plattenspieler/-wechsler mit Riemenantrieb
    2 Geschwindigkeiten  (33,33 & 45 rpm), Antiskating
    Magnet-System Ortofon F 15 O Mk II
    Alu-Plattenteller, Stroboskop
    Tonarm-Handlift
    Cassettenteil:
    HIGH COM Rauschunterdrückung
    Bandsortenwahlschalter (Cr-, FeCr- und Fe-Cassetten)
    30-12500Hz Fe-Cassette
    3-Stelliges Bandzählwerk
    Auto Stop
    Mikrofonanschluss
    Gehäuse Kunststoff  braun mit Frontblende in braun-metallic.
    Rauchfarbene Abdeckhaube
    Optional:
    Telefunken 2-Wege Regalbox Model L 3501 hifi
    (30/50Watt, 4 Ohm, 50-20000Hz, Nußbaum oder mattschwarz, 210x296x196mm)

  • Price in first year of sale
  • 11,630.00 ATS
  • Mentioned in

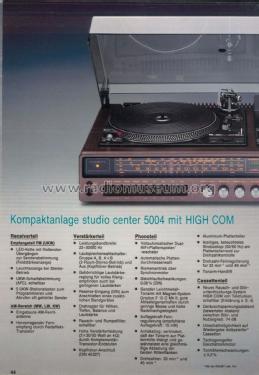

  • -- Original prospect or advert (Telefunken - High Fidelity Programm 1980-81)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
