Studio-Center 5030 HiFi HiFi-Chassis 1000

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1976–1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 125135

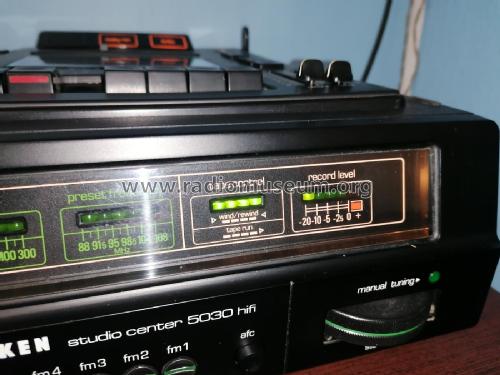

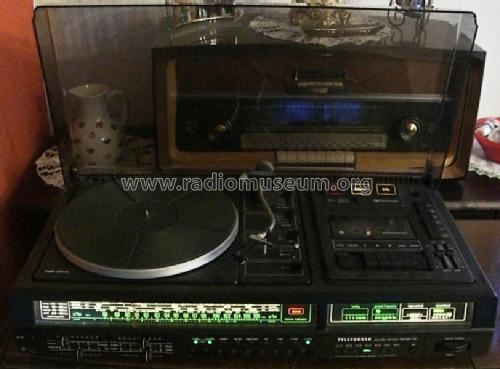

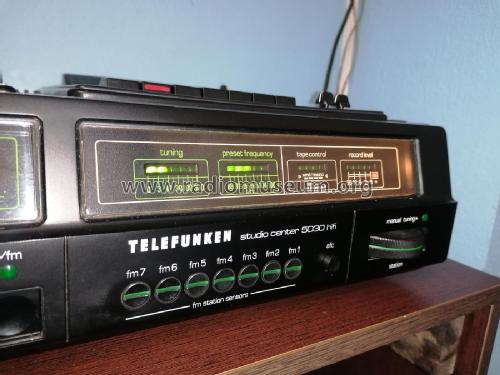

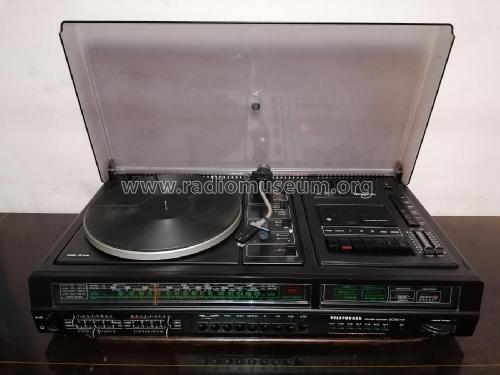

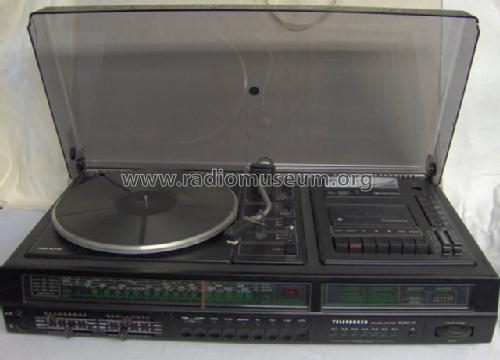

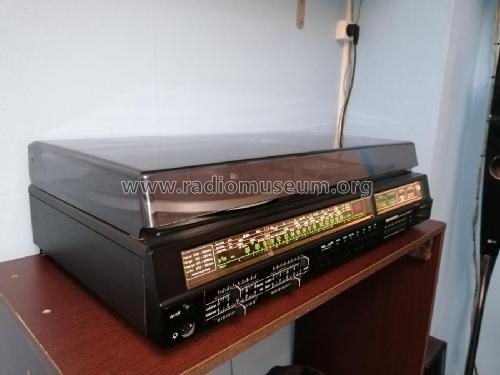

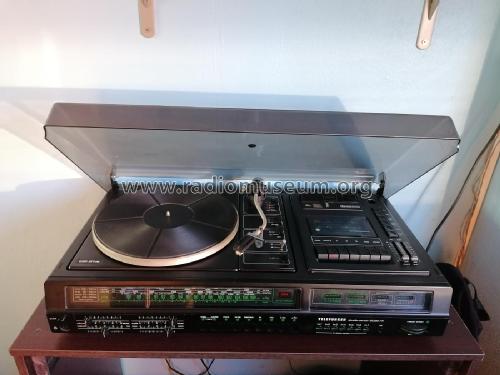

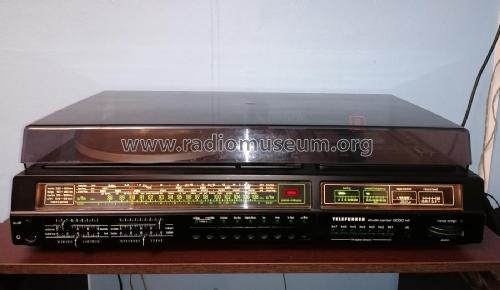

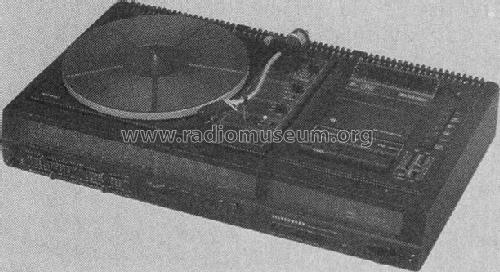

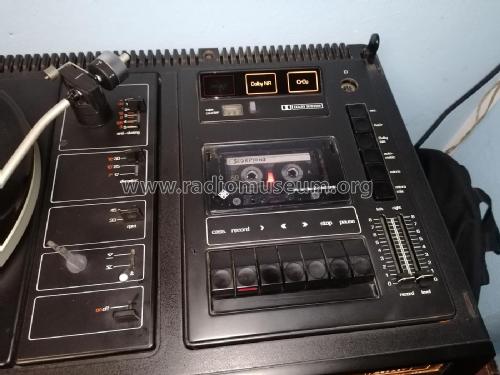

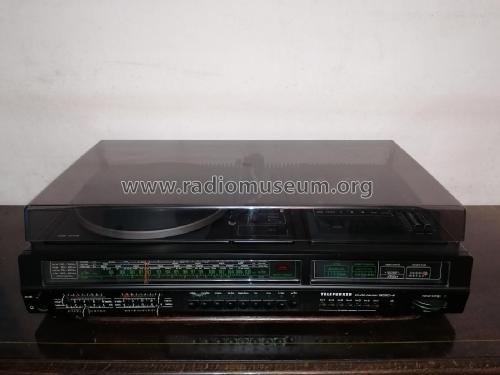

• Picture

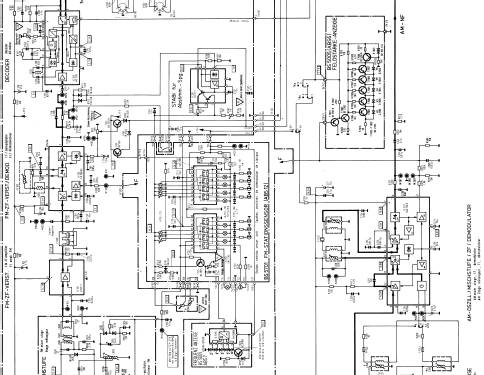

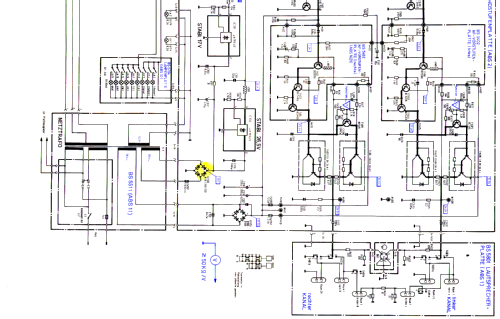

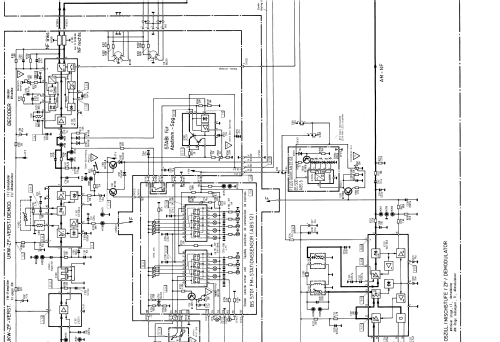

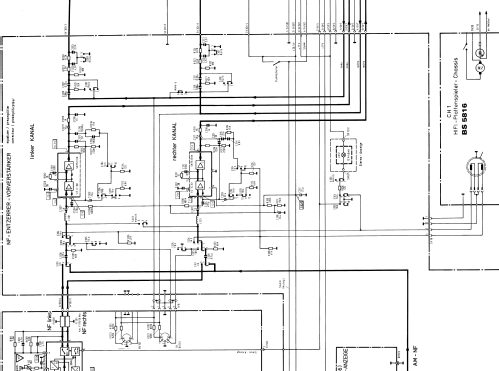

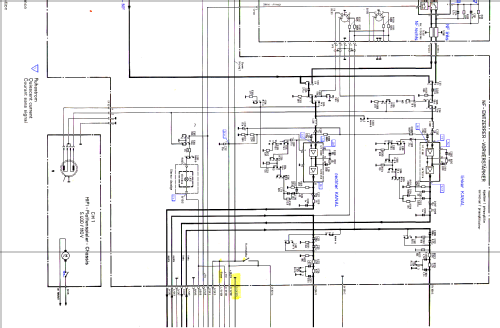

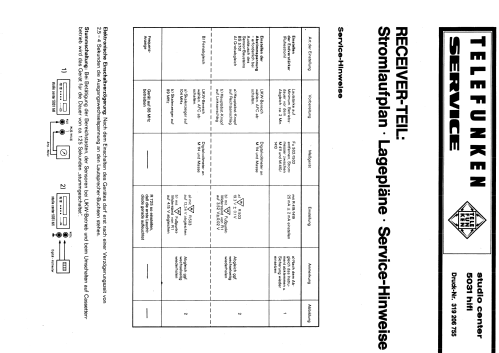

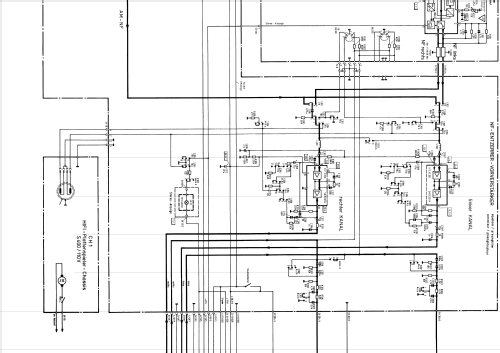

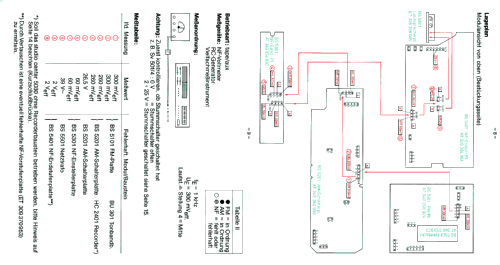

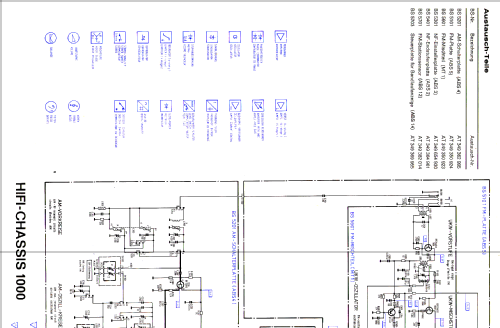

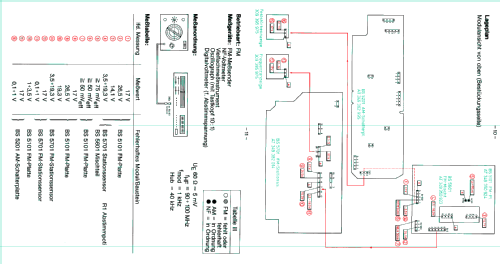

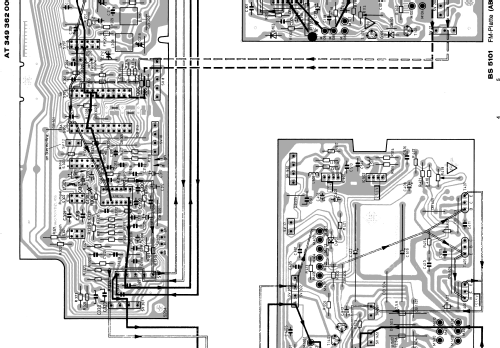

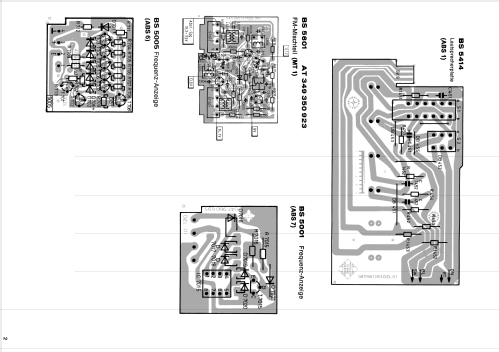

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 15

• Semiconductors
• BF256 BF441 BC556 BC546 BC558 BC550 BC559 BC238 BC549 BC308 BDX33 BDX34 2SC1400 2SC1175 2SC945 1N4148 BB204 SN16889 SAS580 SAS590 µA703 CA3089 MC1310 TDA1046 µA723 HA1457 µA78G NE545 MC1458 CD4001 CD4049 CD4035

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (100 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Studio-Center 5030 HiFi HiFi-Chassis 1000 - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 706 x 118 x 396 mm / 27.8 x 4.6 x 15.6 inch

• Notes

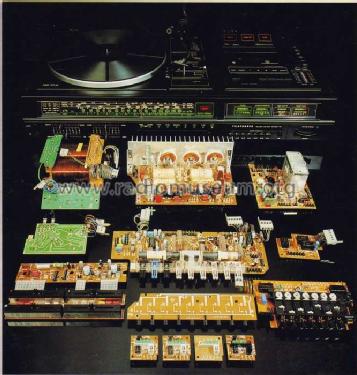

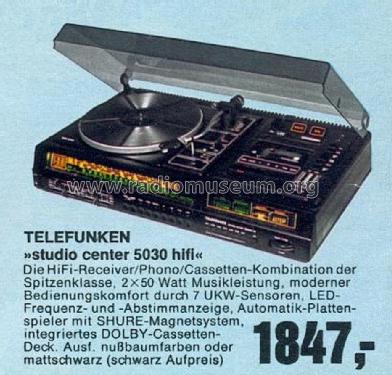

• HiFi-Receiver/Phono/Cassetten-Kombination in Modulbauweise.
  Ausgangsleistung: 2 × 30 W (Sinus).
  Gehäuse: mattschwarz oder nussbaum

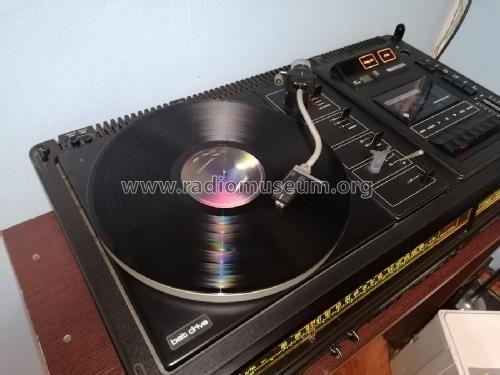

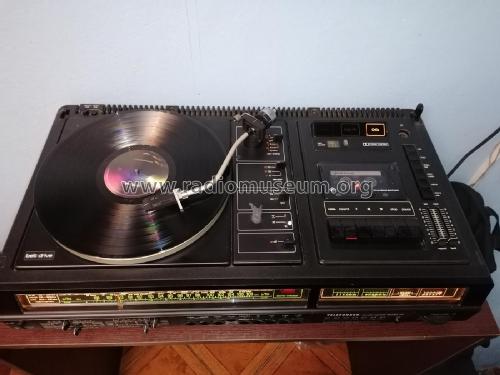

  Plattenspieler Telefunken S400.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Source of data
• Handbuch VDRG 1977/1978

• Mentioned in
• Handbuch VDRG 1976/1977

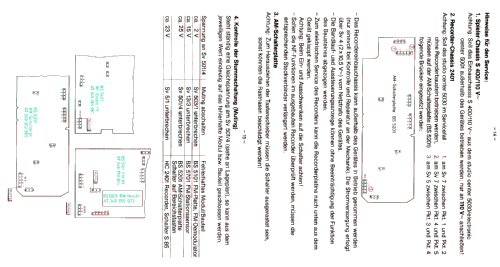

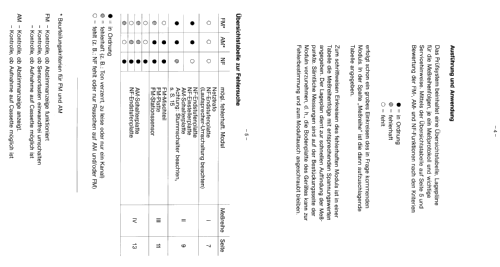

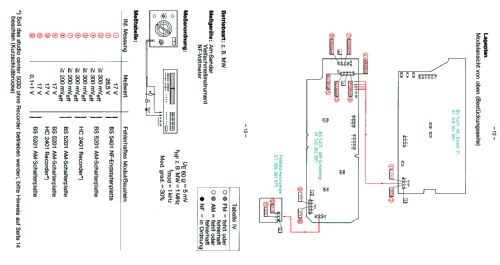

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
