• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114152

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• WE30 or RES964 WE28 or REN914 WE51

• Main principle
• TRF with regeneration; Reflex

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

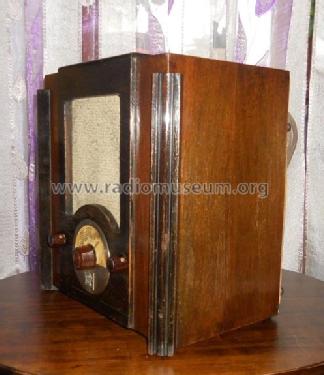

• Model: 327 - Telefunken Italia, Milano

• Shape
• Tablemodel, with any shape - general.

• Notes

• Autodina reflex derivata dal modello base Balilla. Scala parlante circolare illuminata, ingresso fono, controllo di sensibilità con variazione della reazione positiva.
  Telefunken designated this radio as 327. It was an improved Radio Balilla, using the same chassis. Lighted tuning dial, sensitivity control, acting on the regeneration variable capacitor, and phono pick-up input.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Price in first year of sale
• 570.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
