- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104385
Click on the schematic thumbnail to request the schematic as a free document.

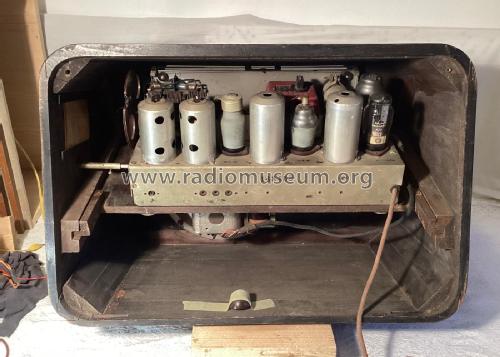

- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 469 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220; 280 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org

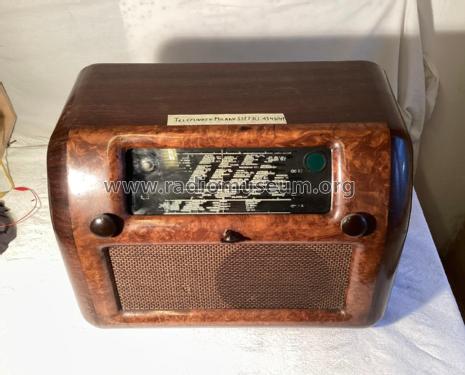

- Model: T531 - Telefunken Italia, Milano

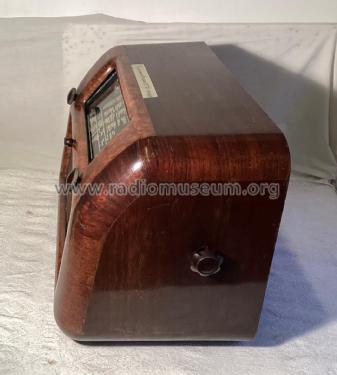

- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 600 x 400 x 340 mm / 23.6 x 15.7 x 13.4 inch
- Notes
-
Telefunken 531.
La WE18 è una valvola con 2 funzioni: Indicatore di sintonia "Occhio Magico" e pentodo usato in questo apparecchio come preamplificatore di bassa frequenza.
- Source of data
- Guida Pratica Antique Radio II (2000)
- Literature/Schematics (1)
- Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 150)
- Literature/Schematics (2)
- Il Radio Libro, (Ravalico) 6a edizione 1942
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
