- Country
- Italy
- Manufacturer / Brand
- Telefunken Italia, Milano
- Year
- 1939/1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104466
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 469 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 160; 220; 280 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 24 cm = 9.4 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: T640 - Telefunken Italia, Milano
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 650 x 435 x 330 mm / 25.6 x 17.1 x 13 inch
- Notes

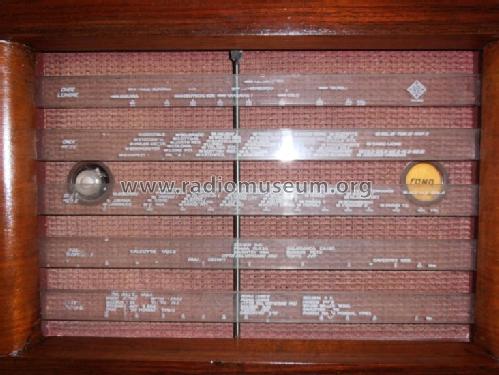

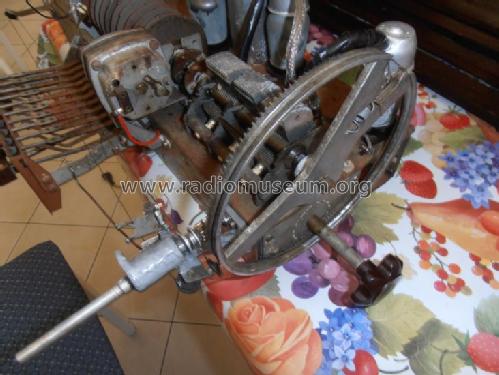

- Serie Armonica. Gamme d'onda: lunghe, medie, tropicali, corte ( OL 150-320 Khz, OM 515-1550 Khz, OT 90-37,5 Mt, 32-8,5 Mt). Oltre la sintonia manuale un motorino, posto all'interno, con cammes permette la sintonizzazione automatica di stazioni predefinite premendo uno dei 10 tasti esterni. Il modello variante 645 è da pavimento con giradischi incorporato.

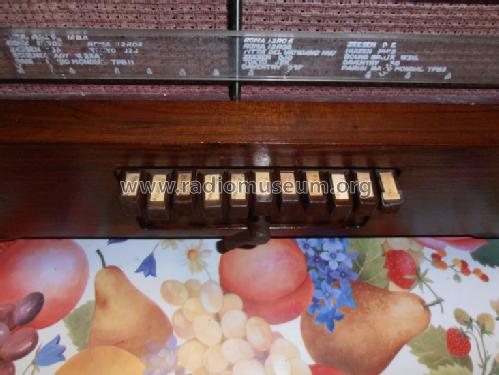

Wave bands: long, medium, tropical, short waves. 10 preset stations with push buttons.
- Net weight (2.2 lb = 1 kg)
- 26.5 kg / 58 lb 5.9 oz (58.37 lb)
- Price in first year of sale
- 2,850.00 ITL
- Source of data
- Guida Pratica Antique Radio II (2000)
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Collezione di Schemi, Scuola Radio Elettra 1953 (pag. 151)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
