T8Z

Telefunken - Krajowe Zaklady, Warszawa

Data
Forum
Pictures
Collections

  • Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 110405

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: T8Z - Telefunken - Krajowe Zaklady,
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 640 x 370 x 290 mm / 25.2 x 14.6 x 11.4 inch
  • Notes
  • Radio scale visible in miror on botom radio case open lid.
  • Net weight (2.2 lb = 1 kg)
  • 22.6 kg / 49 lb 12.5 oz (49.78 lb)
  • Price in first year of sale
  • 750.00 zl
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Zenonas Langaitis. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Telefunken - Krajowe: T8Z

Threads: 1 | Posts: 9

Dear  colleagues, this Telefunken coming to my Radio collection.  Radio used in Lithuania till WW2. Set without back cower. No model nr. on chassis. Any notes.

It was small surprise for me - whan  I dont find any info in internet about  such model. So many unknown radios are !!   And from  famous radio companies...

But, its not easy find radio by picture only.

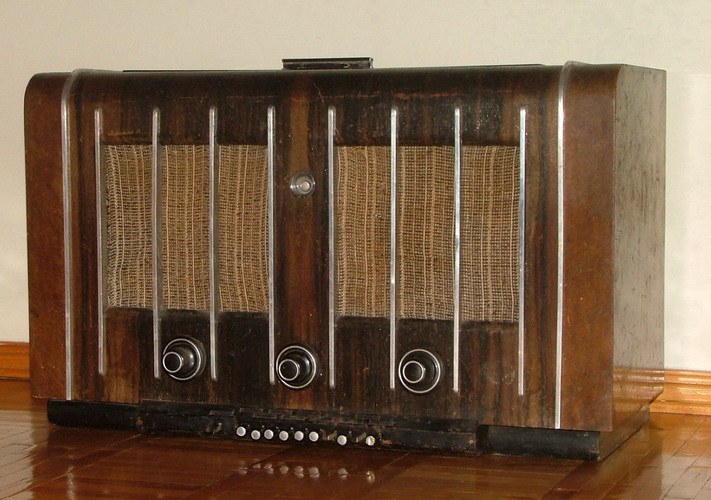

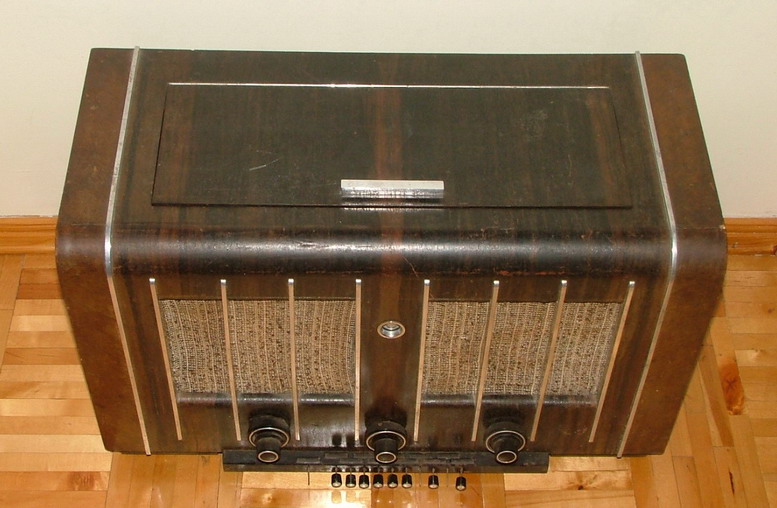

So, please for help. Radio scale is rightly  viewable  in mirror. Realy, all notes on radio scale glass  is  mirror-image.  Fix radio station knobs in front.  Here photos...



Attachments

Zenonas Langaitis, 19.Dec.06
