• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1951–1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166703

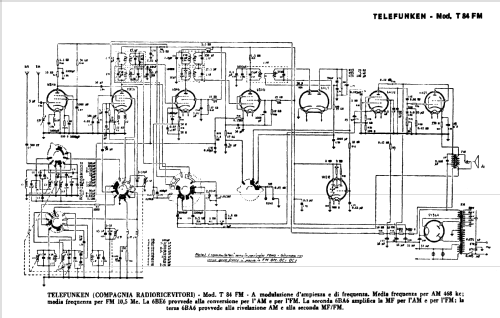

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6BA6 6BE6 6BA6 6BA6 WE12 6AL5 6AU6 6AQ5 5Y3GR

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: T84 FM - Telefunken Italia, Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 660 x 330 x 280 mm / 26 x 13 x 11 inch

• Notes
• Serie Giubileo. Mobile identico alla Telefunken T84 ma con aggiunta della modulazione di frequenza.
  Same as T84 but with additional FM.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Author
• Model page created by Alessandro Staffoni. See "Data change" for further contributors.
