• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1992 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 242349

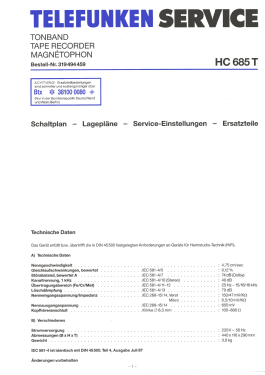

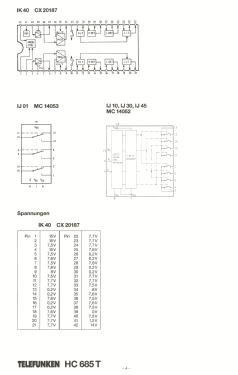

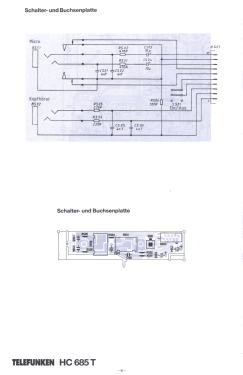

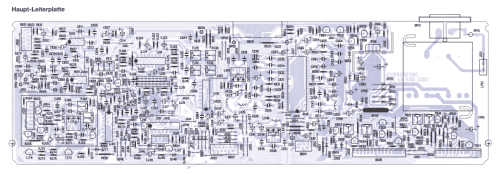

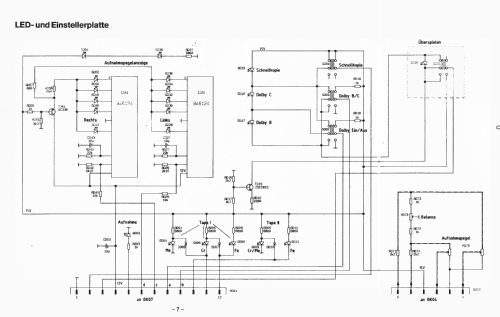

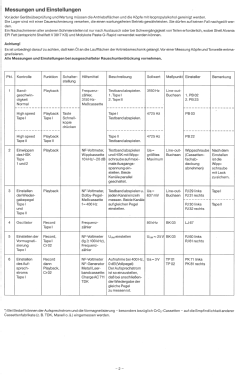

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Tape Recorder HC-685T - Telefunken Deutschland TFK,

• Shape
• Book-shelf unit.

• Notes

• 2 Laufwerke, LED-Zeile, Dolby B, High-speed Dubbing.

• Author
• Model page created by Reinhard Riek. See "Data change" for further contributors.
