TD21

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1968 ??

• Category
• Microphone or Pick-up element

• Radiomuseum.org ID
• 92169

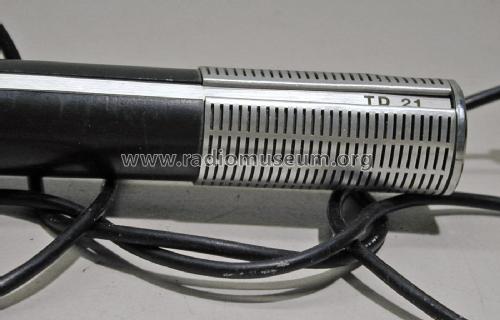

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: TD21 - Telefunken Deutschland TFK,

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 21 x 21 x 140 mm / 0.8 x 0.8 x 5.5 inch

• Notes
• Dynamisches Mikrofon, schlanke Stabform, mit Stativ aus Federstahl. Dreipoliger Diodenstecker.

• Net weight (2.2 lb = 1 kg)
• 0.180 kg / 0 lb 6.3 oz (0.396 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Klaus Ortwein. See "Data change" for further contributors.
