• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1959

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 147347

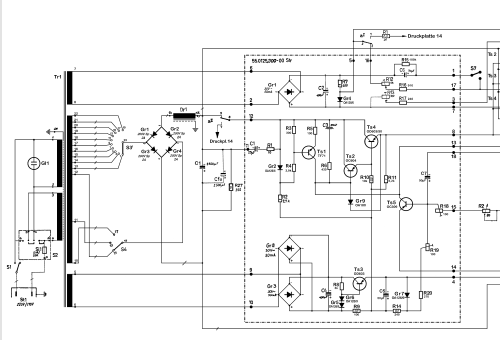

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• TF71 OC604 OD603 OC309 OD603 OC36 OC36 OC36 OC36 OA126 OA180

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Telestabi 3, Stabilisiertes Netzgerät 3A MS/NG 615/1 - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 260 x 310 mm / 15.7 x 10.2 x 12.2 inch

• Notes
• Stabilisiertes Netzgerät 0,9-31,2 Volt, 3 Ampere,
  umschaltbares Anzeigeinstrument für Ausgangsstrom.
  Dioden 1x pro Typ gelistet.

• Net weight (2.2 lb = 1 kg)
• 20.5 kg / 45 lb 2.5 oz (45.154 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Horst Schneider. See "Data change" for further contributors.
